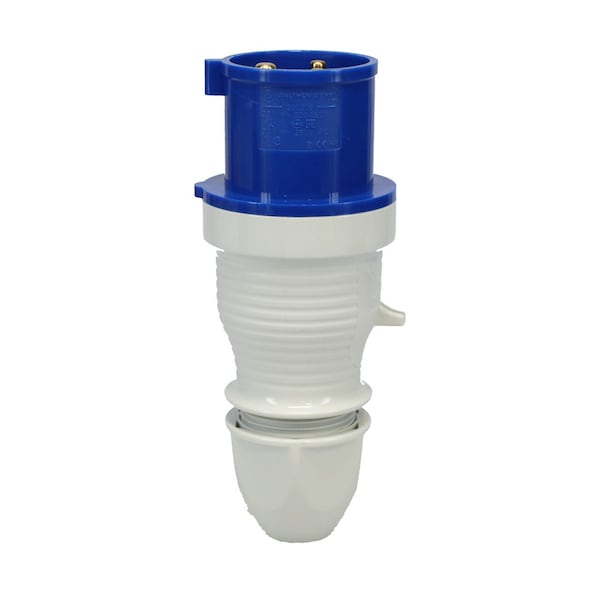

Pin and Sleeve Plug, 30A, 230 or 250, 1 Phase, 2 Pole, Blue, Screw Terminals Wire Connection Type
Mfr # 230306
Zoro # G016275772
product price:Â $71.19
/eaKey Features
Current Rating
30 A
Voltage Rating
230 or 250
Phase
1
Number of Poles
2
Number of Wires
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 230306
- Zoro #
- G016275772
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 7.28 in
- Width
- 2.83 in
- Height
- 2.95 in
Details
- Item
- Pin and Sleeve Plug
- Current Rating
- 30 A
- Voltage Rating
- 230 or 250
- Phase
- 1
- Number of Poles
- 2
- Number of Wires
- 3
- IP Rating
- IP44
- Wire Connection Type
- Screw Terminals
- Housing Color
- Blue
- Cap Type
- No cap or cover
- Standards
- IEC 60309, UL Listed, CSA Certified
- Material
- Thermoplastic
- NEMA Enclosure Rating
- Not Rated
- Cable Gland
- External Cable Gland
- Clock Position
- 6
- Application
- Industrial Electrical
Description
Walther Electric 230306 Pin and Sleeve Plug 30/32A 3 Wire 3o 250/230 VAC 6Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 330P6 electrical plugs.
- UL Listed
- CSA Certified
- External Cable Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
