  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

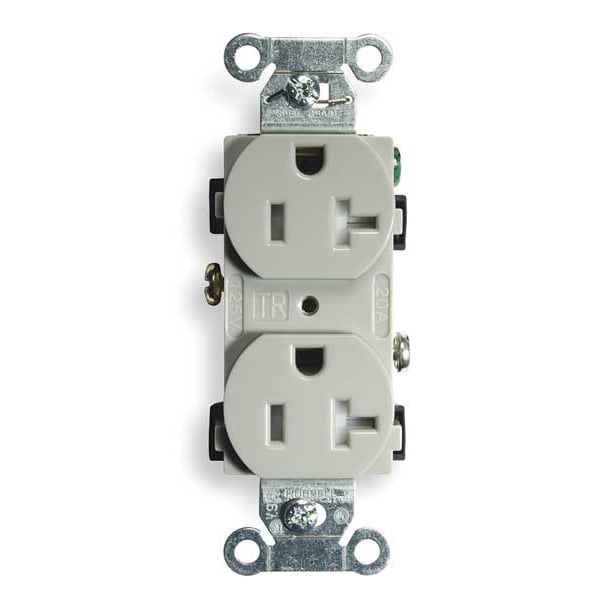

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20GRYTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20GRYTR

  • Zoro # G1290326

product price: $8.91
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20GRYTR
Zoro #
G1290326
UPC #
783585144146
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Overall Depth
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
125VAC
Outlet Type
Duplex
Surge Suppression
No
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
Yes
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Weather Resistant
No
Power Indicator
No
Application Environment
Commercial
Material
Nylon
HP
1 hp
Type
Duplex
Shrouded
No
Grade
Federal Specification
For Location
Indoor
GFCI
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Polarized
Yes
AFCI
No
Horsepower Rating
1 hp
Market
Commercial, Industrial
NEMA Enclosure Rating
1
Surge Protection
No
Standard
NEMA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Mounting Screw Material
Steel-Zinc Plated
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Strap Material
.040" (1) Steel (Galvanized)
Device Color
Gray
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Receptacle Style
Duplex
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
20A, 125V
Face Shape
Traditional
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Auto Ground Clip Material
Stainless Steel
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Base Material
Nylon
Flammability
UL 94 V-2
Horsepower
1
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon

Description

• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel straps
• Triple wipe contacts
