  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

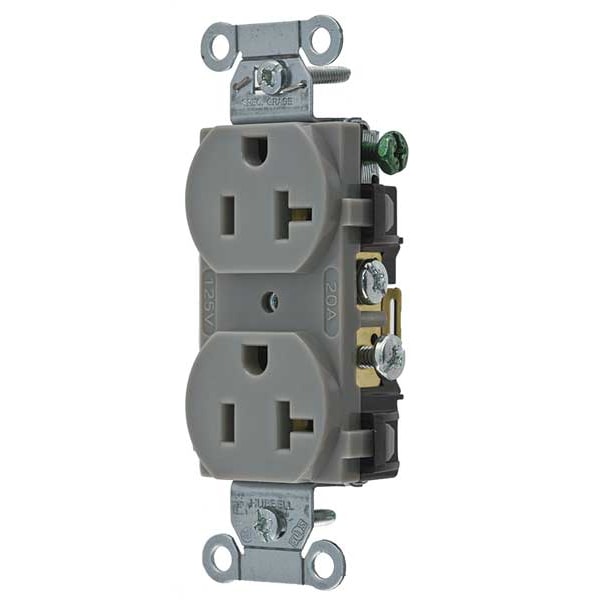

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR20GRY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR20GRY

  • Zoro # G2008352

product price: $2.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20GRY
Zoro #
G2008352
UPC #
783585900124
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Display Size
Standard Sized Product
Dimensions
1.32 in x 0.83 in x 3.28 in
Length
1.32 in
Wire Size
#12 AWG to #10 AWG
Width
0.83 in
Height
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Standard Resistance
Flange Type
Non-Flanged
Tamper Resistant
No
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Application Environment
Commercial
Corrosion Resistant
No
Weather Resistant
No
Number of Gangs
1
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Side
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Outlet Type
Duplex
NEMA Configuration
5-20
HP
1 hp
Wiring Method
Side
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Material
Nylon
Type
Duplex
AFCI
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Key Resistance Properties
Standard Resistance
Shrouded
No
Connection Orientation
Straight
GFCI
No
Number of Poles & Wires
2 Pole / 3 Wire
Housing Material
Nylon
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Wire Connection Types
Screw Terminals
Grade
Federal Specification
Additional Electrical Protection
Standard Protection
Primary Resistance Properties
20 A
Polarized
Yes
For Location
Indoor
Includes Mounting Hardware
Yes
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Brass
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Terminal Screw Material
#8-32 Brass, Multiple Drive
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Base Material
Nylon
Horsepower
1
Receptacle Grade
Commercial Series Specification Grade
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Receptacle Style
Duplex
Flammability
UL 94 V2.
Auto Ground Clip Material
.032" (.8) Steel Wire
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Rating
20A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Face Style
Smooth Face
Mounting Strap Material
.040" (1) Steel (Galvanized)
Face Shape
Traditional
Power Contacts Material
.031" (.8) Phosphor Bronze
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Device Color
Gray
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Top Material
Nylon
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
2500 W
Nema Rating
5-20R
Dielectric Strength
Withstands 2,000V minimum
Series
Commercial Specification Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Commercial Specification Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
