  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

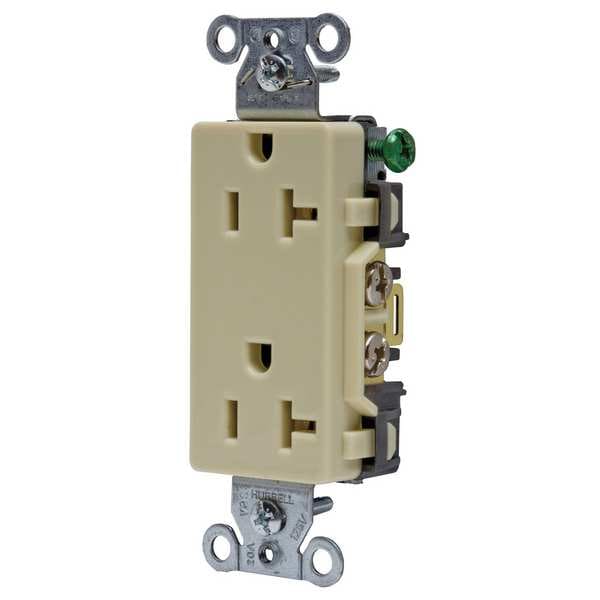

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20I

  • Zoro # G1994781

product price: $7.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20I
Zoro #
G1994781
UPC #
783585127880
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.3 in
Mount Hole Center-to-Center Height
2.7 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Width
1.3 in
Face Plate Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type
Flush
Power Indicator
No
Sub-Category
Duplex Receptacles
Application Environment
Commercial
HP
1 hp
NEMA Configuration
5-20
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Outlet Type
Decorator
Tamper Resistant
No
Weather Resistant
No
Material
Nylon
Type
Duplex
Grade
Federal Specification
Polarized
Yes
Horsepower Rating
1 hp
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Nylon
Connection Orientation
Straight
For Location
Indoor
Cover Type
No Cover
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
GFCI
No
AFCI
No
Base Material
Nylon
Rating
20A, 125V
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Standard
NEMA
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Face Style
Smooth Face
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Strap Material
.040" (1) Steel (Galvanized)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Face Shape
Decorator
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Device Color
Ivory
Flammability
UL 94 V-2
Power Contacts Material
.030" (.8) Brass
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
