  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

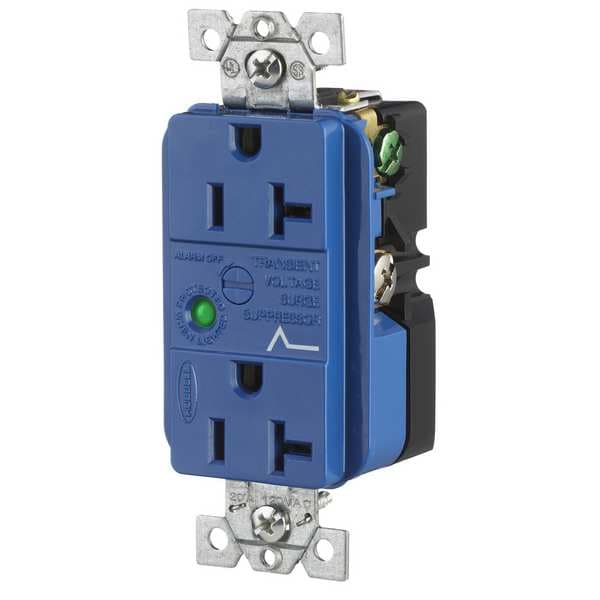

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362SA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362SA

  • Zoro # G2704195

product price: $101.59
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5362SA
Zoro #
G2704195
UPC #
783585060316
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.6 in
Overall Depth
4 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Moisture immunity
Flange Type
Non-Flanged
Power Indicator
Yes
Voltage
125VAC
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Special Features
Audible Alarm
Mounting Type
Flush
Outlet Type
Duplex
Application Environment
Harsh and Heavy Use Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
Yes
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
Corrosion Resistant
No
NEMA Configuration
5-20
Type
Duplex
Surge Protection
Yes
Cover Type
No Cover
Connection Orientation
Straight
Visual Indicator Lights
Power Connected
AFCI
No
Shrouded
No
Grade
Federal Specification
NEMA Enclosure Rating
1
Includes
Grounding Staple, Mounting Hardware
UL 94 Flammability Rating
V-2
For Location
Indoor
Includes Mounting Hardware
Yes
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Horsepower Rating
1 hp
Market
Industrial
GFCI
No
Minimum Operating Temperature
32 Degrees F
Housing Material
Composite
Mounting Screws
Steel, Zinc-Plated
Device Top
Nylon
ANSI/IEEE
C62.41 (IEEE 587)
Mounting Strap
.050" (1.3) Steel-Zinc Coated
Device Base
Nylon
CSA Certified
To Specification C22.2 No. 42
Listed To
UL Standards 498 Receptacles, Meets UL1449 TVSS
Receptacle Grade
Standard
LED
Red
Power Contact
.031" (.8) Brass
Grounding Screw
Steel (Green)
Auto Ground Clip
Stainless Steel
Poles and Wires
2 Pole, 3 Wire
Contact Design
Tandem Modified Bypass
Terminal Screws
#8-32 Brass
Certifications
UL Listed File E2186
Clamping Plate
.031" (.8) Brass
Receptacle Style
Duplex
Outlet
Straight Blade
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Application
Decorator Duplex with Light and Alarm
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Mounting Screws
Nema Rating
5-20R
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Series
Specification Grade
Response Time
5
Frequency Rating
60 Hz
Indicator(s) Type
LED and Audible Alarm

Description

Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
• Automatic self-grounding staple
• Distinctive surge symbol provides quick identification
• Power-on indicator light verifies that power is available
• Alert alarm sounds when surge protection is no longer functioning
