  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

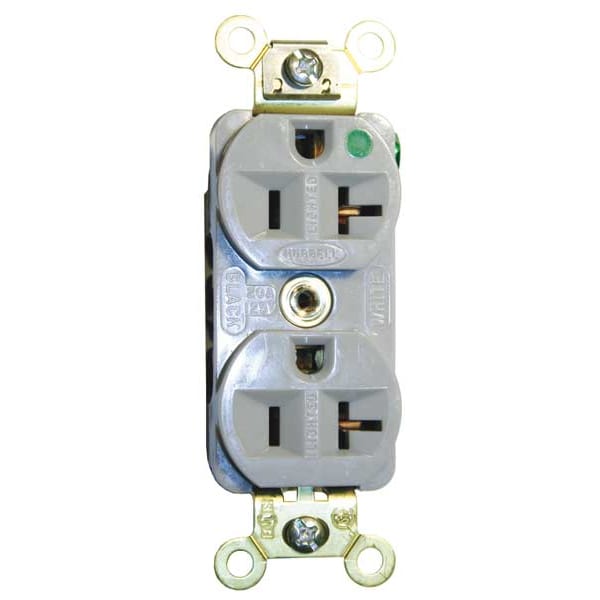

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300ILGY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300ILGY

  • Zoro # G0422021

product price:  $52.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300ILGY
Zoro #
G0422021
UPC #
783585016481
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in
Wire Size
#12 AWG to #10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Face Plate Width
1.6 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Length
3.28 in
Height
1.05 in
Width
1.33 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Outlet Type
Duplex
HP
1 hp
Sub-Category
Duplex Receptacles
Voltage
125VAC
NEMA Configuration
5-20
Power Indicator
No
Material
Impact Modified PBT/Reinforced PET
Application Environment
Heavy Use Hospital Grade
Surge Suppression
No
Tamper Resistant
No
Weather Resistant
No
Corrosion Resistant
No
Special Features
Illuminated
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Nema Rating
5-20R
Connectivity
Back and Side Wired Screw Terminals
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Maximum Horsepower
1
Style
Finder Groove Face
Type
Receptacle
Carton Quantity
10
Amperage
20 A
Series
Hospital Grade
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Shrouded
No
Surge Protection
No
Grade
Hospital Grade Fed. Spec.
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
1
Connection Orientation
Straight
Horsepower Rating
1 hp
Polarized
Yes
Housing Material
Polycarbonate
AFCI
No
For Location
Indoor
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Contact Material
Nickel-Plated Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Gray
Device Grade
Heavy Duty Spec Grade
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94V-2
Poles and Wires
2 Pole, 3 Wire
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Wattage
2500 W
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Extra Heavy Duty Hospital Grade
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
• Entire face illuminated by two LEDs
