  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

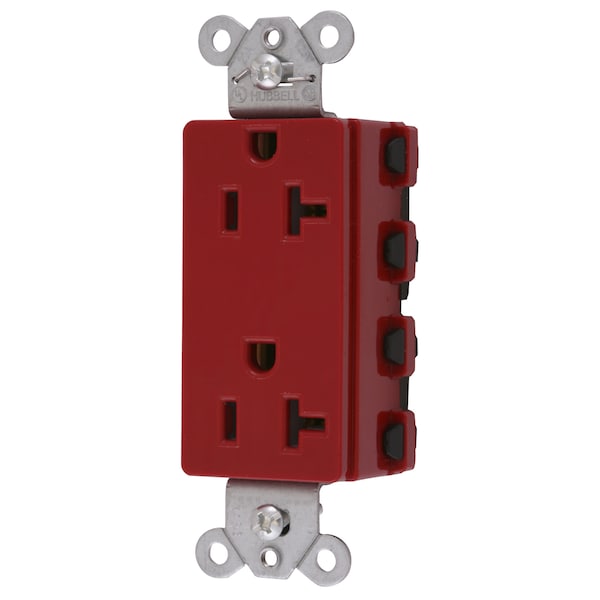

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP2162RA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2162RA

  • Zoro # G800490015

product price:  $12.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNAP2162RA
Zoro #
G800490015
UPC #
783585248035
Country of Origin
China

Dimensions

Height
1.1 in
Width
1.64 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Flange Type
Non-Flanged
Color
Red
Type
Standard Duplex
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Series
Extra Heavy Duty
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
Application
Extra Heavy Duty Specification Grade
Connectivity
Connectorized
Material
Nylon
Maximum Horsepower
1
Nema Rating
5-20R
Style
Style Line Decorator
Weight
0.2 lb
Number Of Conductors
3-Wire Grounding
Number Of Wires
3-Wire
UPC
783585000000
Flammability
UL 94V-2
Mounting Strap
Galvanized steel
Face
Nylon
Mounting Screws
Zinc plated steel
Base
PBT
Auto Self-grounding Staple
Stainless steel
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Red
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Current Interrupting
Receptacle certified for current interrupting at full rated current
Contacts
Brass
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
2500 W
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Decorator Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red, USA
