  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

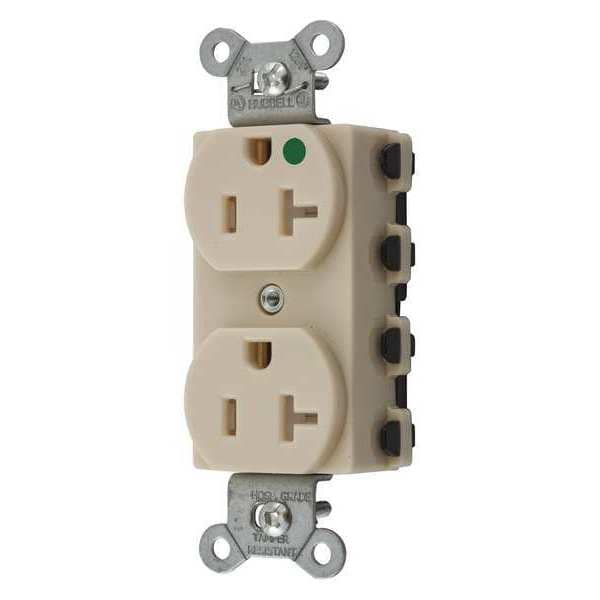

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8300ITRA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8300ITRA

  • Zoro # G4440655

product price: $28.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8300ITRA
Zoro #
G4440655
UPC #
783585193359
Country of Origin
China

Dimensions

Width
1.64 in
Height
1.1 in
Face Plate Height
2.6 in
Face Plate Width
1.6 in
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.64 in x 1.1 in
Length
3.28 in
Wire Size
#12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Voltage
125VAC
Weather Resistant
No
Power Indicator
No
Tamper Resistant
Yes
Amps - Plugs and Receptacles
20
Color
Ivory
Voltage - Plugs and Receptacles
125V AC
Surge Suppression
No
Item - Plugs and Receptacles
Receptacle
Material
Nylon
Description
Finder Groove
Amps
20
Weather Resistant - Plugs and Receptacles
No
Amps - Plugs and Receptacles
20 A
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Modular
Corrosion Resistant
No
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Color - Plugs and Receptacles
Ivory
NEMA Rating
1
NEMA Configuration
5-20
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Includes
Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
For Location
Indoor
AFCI
No
Shrouded
No
Horsepower Rating
1 hp
Market
Commercial
Surge Protection
No
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Connection Orientation
Straight
GFCI
No
Polarized
Yes
Cover Type
No Cover
Flammability
UL 94V-2
Ground Contacts
Brass
Automatic Self-grounding Staple
Stainless steel
Dielectric Voltage
Withstands 2,000V minimum
Power Contacts
Brass
Base
PBT
Current Interrupting
Receptacle certified for current interrupting at full rated current
Device Color
Ivory
Mounting Strap
Galvanized steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Mounting Screws
Zinc plated steel
Face
Nylon
Style
Smooth Face
Number Of Conductors
3-Wire Grounding
Wattage
2500 W
Current / Amperage Rating
20 A
Item Type
Smooth Face
Type
Tamper-Resistant
Series
Hospital Grade
Horsepower - Maximum
1
Application
Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
Voltage Rating Description
125 V
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
20 A
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Connectivity
Connectorized

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
