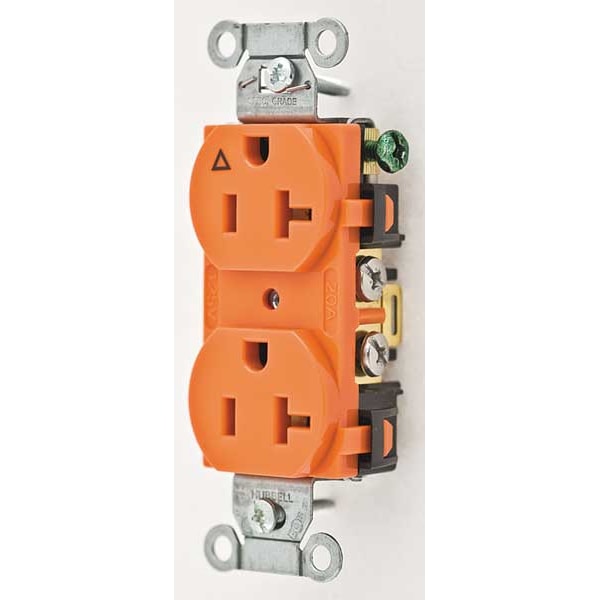

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground
Mfr # IG20CR
Zoro # G0360053
product price: $8.99
/eaKey Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IG20CR
Zoro #
G0360053
UPC #
783585147628
Country of Origin
China
Dimensions
Wire Size
#12 AWG to #10 AWG
Dimensions
1.32 in x 1.06 in x 3.28 in
Display Size
Standard Sized Product
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Overall Depth
3.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Length
1.32 in
Width
1.06 in
Height
3.28 in
Description
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
•
•
