- MFR #
- IG20CRGRY
- Zoro #
- G0809042
- UPC #
- 783585147659
- Country of Origin
- China

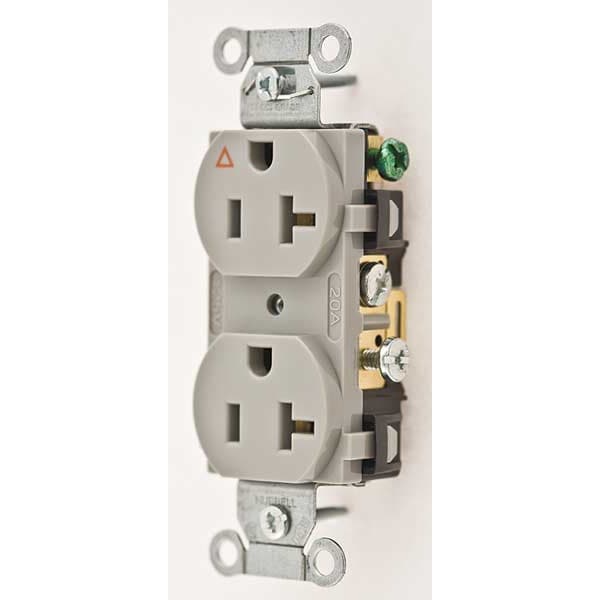

- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Side
- Grounding
- Isolated Ground
- Housing Color
- Gray
- Mount Type
- Flush
- Standards
- CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
- Resistance Properties
- Corrosion Resistant
- Flange Type
- Non-Flanged
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-20R
- HP
- 1 hp
- Outlet Type
- Duplex
- Wiring Method - Plugs and Receptacles
- Side
- Weather Resistant - Plugs and Receptacles
- No
- Number of Gangs
- 1
- Material
- Nylon
- Voltage
- 125VAC
- Application Environment
- Commercial
- Weather Resistant
- No
- Sub-Category
- Duplex Receptacles
- Power Indicator
- No
- NEMA Configuration
- 5-20
- Special Features
- Isolated Ground
- Tamper Resistant
- No
- Surge Suppression
- No
- Mounting Type
- Flush
- Mounting Type - Plugs and Receptacles
- Flush
- Corrosion Resistant
- No
- Maximum Horsepower
- 1
- Type
- Standard Duplex
- Dielectric Strength
- Withstands 2,000V minimum
- Number Of Wires
- 3-Wire
- Series
- Commercial Specification Grade
- Nema Rating
- 5-20R
- Style
- Smooth Face
- Brand
- Hubbell Wiring Device-Kellems
- Amperage
- 20 A
- Connectivity
- Side Wired
- Carton Quantity
- 10
- Polarized
- Yes
- UL 94 Flammability Rating
- V-2
- AFCI
- No
- Surge Protection
- No
- Cover Type
- No Cover
- NEMA Enclosure Rating
- 1
- Market
- Commercial
- Grade
- Federal Specification
- GFCI
- No
- Connection Orientation
- Straight
- For Location
- Indoor
- Housing Material
- Nylon
- Includes Mounting Hardware
- Yes
- Minimum Operating Temperature
- -40 Degrees F
- Includes
- Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
- Contact Material
- Brass
- Shrouded
- No
- Maximum Operating Temperature
- 167 Degrees F
- Horsepower Rating
- 1 hp
- Face
- Nylon
- Flammability
- UL 94 V-2
- Mounting Strap
- .040 in. (1) Galvanized steel
- Base
- Nylon
- Current Interrupting
- Certified for current interrupting at full rated current
- Wire Clamp
- .062 in. (1.6) Nickel plated steel
- Device Color
- Gray
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Terminal Accommodation
- #12-#10 AWG copper stranded or solid conductor only
- Ground Contacts
- Brass
- Terminal Screws
- Plated steel
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Power Contacts
- .030 in. (.8) Brass
- Mounting Screws
- Galvanized Steel
- Automatic Self-grounding Staple
- Stainless steel
- Dielectric Voltage
- Withstands 2,000V minimum
- Application
- Commercial Specification Grade
- Material - Mounting Hardware
- Screw Mounting
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Wattage
- 2500 W
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Horsepower - Maximum
- 1
- Industry Standard(s)
- Certified to CSA C22.2, No. 42
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
