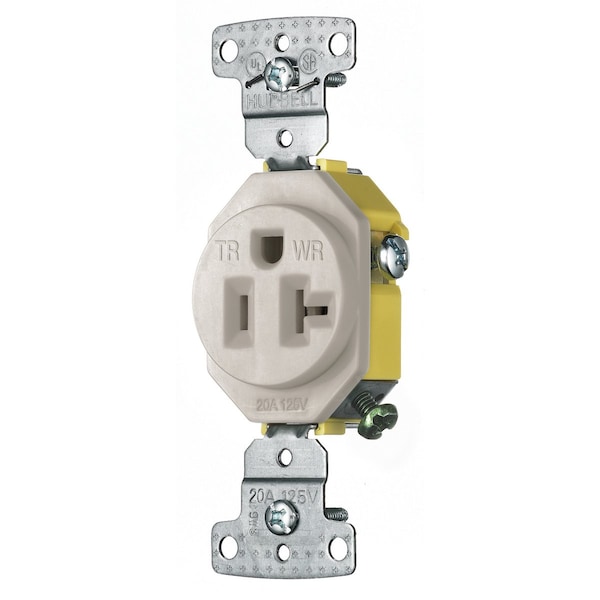

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Self-Grounded
- Mfr # RR201LAWRTR
- Zoro # G300622589
product price:Â
$
9.29
/ea
Key Features
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RR201LAWRTR
- Zoro #
- G300622589
- UPC #
- 883778302978
- Country of Origin
- China
- Item
- Straight Blade Receptacle
- Receptacle Type
- Single
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Side
- Grounding
- Self-Grounded
- Housing Color
- Light Almond
- Standards
- CSA C22.2, NEMA WD-6, No. 42, UL Listed
- Resistance Properties
- Tamper Resistant, Weather Resistant
- Flange Type
- Non-Flanged
- Material
- Thermoplastic
- Application
- Residential Receptacles
- Material - Mounting Hardware
- Screw Mounting
- Number Of Wires
- 3-Wire Grounding
- Wattage
- 2500
- Nema Rating
- 5-20R
- Environmental Conditions
- Weather Resistant
- Performance
- Environmental - Operating temperature - -20°C to 60°C Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Dimensions
- Wire Size
- #14 AWG to #12 AWG
- Display Size
- Standard Sized Product
Description
Hubbell Wiring Device Kellems, TradeSelect, Straight Blade, SingleReceptacle, Weather and Tamper Resistant, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Light Almond
