  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

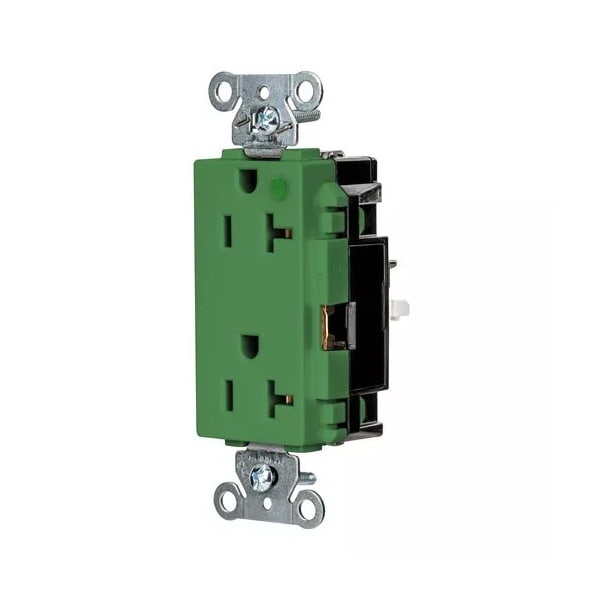

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL2182STGN - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL2182STGN

  • Zoro # G610986364

product price: $37.26
/ea
Sold in multiples of 10 for $372.60

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2182STGN
Zoro #
G610986364
UPC #
783585726106
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.6 in
Overall Depth
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Green
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
UL 94 Flammability Rating
V-2
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Horsepower Rating
1 hp
Polarized
Yes
Cover Type
No Cover
Includes Mounting Hardware
Yes
Shrouded
No
Contact Material
Copper Alloy
Grade
Hospital Grade
Includes
Mounting Hardware
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Housing Material
Thermoplastic
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
AFCI
No
Hub Type
Feed Through
Market
Commercial
GFCI
No
Connection Orientation
Straight
Number of Gangs
1
NEMA Enclosure Rating
1
For Location
Indoor

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant
