  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

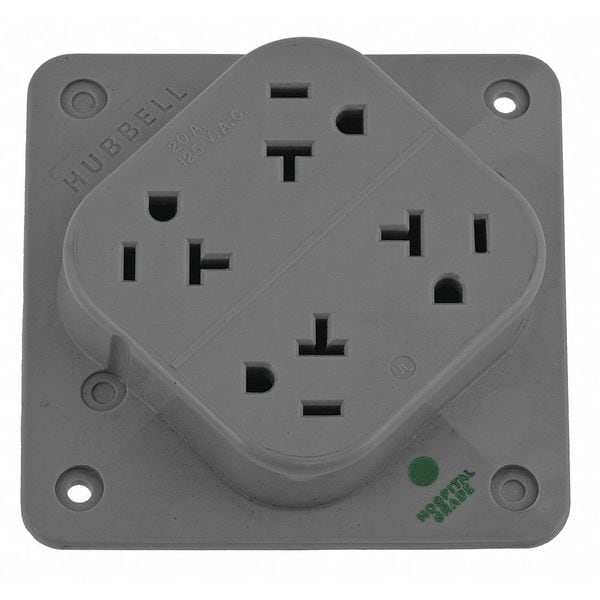

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL420HGY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL420HGY

  • Zoro # G4844239

product price: $43.69
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420HGY
Zoro #
G4844239
UPC #
-
Country of Origin
United States

Dimensions

Height
0.92 in
Width
4.3 in
Face Plate Height
4.3 in
Maximum Wire Size
12 AWG
Face Plate Width
4.3 in
Mount Hole Center-to-Center Width
3.4 in
Mount Hole Center-to-Center Height
3.4 in
Overall Depth
0.9 in
Wire Size
#12 AWG
Length
4.3 in
Display Size
Standard Sized Product
Dimensions
4.3 in x 4.3 in x 0.92 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Standards
CSA Certified C22.2 No. 42 File 285, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
HP
1 hp
Voltage
125VAC
Surge Suppression
No
Power Indicator
No
Sub-Category
Quad Receptacles
Special Features
Audible Alarm
Weather Resistant
No
Material
Nylon
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back
Tamper Resistant
No
Outlet Type
Quad
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Quad
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Hospital Grade
GFCI
No
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Includes
4-PLEX Adapter Plate
Contact Material
Brass
Housing Material
Polycarbonate
Shrouded
No
UL 94 Flammability Rating
V-2
For Location
Indoor
Surge Protection
No
Horsepower Rating
1 hp
Cover Type
No Cover
Grade
Hospital Grade Fed. Spec.
Polarized
Yes
Number of Outlets
4
Connection Orientation
Straight
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94V-2
Current Interrupting
Capable of withstanding a fault level of 1000A, per UL498
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Gray
Terminal Accommodation
#12 AWG copper stranded or solid conductor only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Nema Rating
5-20R
Wattage
2500 W
Horsepower - Maximum
1
Style
Smooth Face
Application
4-Plex Hospital Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Series
Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498 Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 4-PLEX Receptacle is a quad outlet, flush mount device rated for 20A and 125V AC. Constructed to meet hospital grade requirements, it features four NEMA 5-20R outlets in a single gang configuration. The receptacle uses back wired screw terminals to accommodate #12 AWG copper conductors and includes an anchor hole and loop feature for secure wire termination. Its polycarbonate housing provides impact resistance as specified by manufacturer standards, while the unit is grounded and certified to CSA C22.2 No. 42, NEMA WD-6, and UL498 standards.


Key Features of the HUBBELL 4-PLEX Receptacle:

  • Quad Outlet Configuration: Features four NEMA 5-20R outlets in a single device.

  • Amperage/Voltage Rating: Rated for up to 20A at 125V AC.

  • Back Wired Screw Terminals: Supports #12 AWG copper stranded or solid conductor only; includes accessible break-off tabs that allow split circuit configuration.

  • Grounded Design: Grounding feature included; meets requirements for hospital grade use.

  • Impact Resistant Housing: Polycarbonate housing provides impact resistance as specified by manufacturer standards.

  • Flush Mounting: Installs directly into standard electrical boxes using screw mounting hardware (adapter plate included).

  • Performance Ratings: Dielectric voltage withstands minimum 2,000V; current interrupting up to fault level of 1000A per UL498; flammability rated UL94 V-2.

  • Operating Temperature Range: Suitable for continuous use from -40°C (without impact) up to +75°C (+167°F).

  • Certifications: Meets CSA C22.2 No.42 File 285, NEMA WD-6, and UL498 File E2186 requirements.
