  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

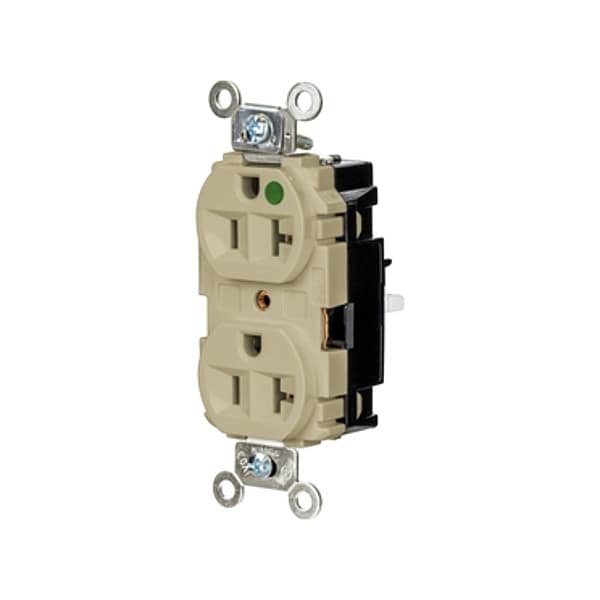

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL8300STI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL8300STI

  • Zoro # G810105541

product price: $33.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300STI
Zoro #
G810105541
UPC #
783585687414
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Face Plate Width
1.6 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Market
Commercial
Horsepower Rating
1 hp
For Location
Indoor
Contact Material
Copper Alloy
For Environment
Dry
Number of Outlets
2
UL 94 Flammability Rating
V-2
Grade
Hospital Grade
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Includes Mounting Hardware
Yes
GFCI
No
AFCI
No
Hub Type
Feed Through
Shrouded
No
NEMA Enclosure Rating
1
Polarized
Yes
Cover Type
No Cover
Surge Protection
No

Description

The HUBBELL Duplex Straight Blade Receptacle is a hospital grade, 20 A, 125V AC device rated for commercial indoor use. It features the EdgeConnectTM screwless termination system, allowing wire connection via insertion and plunger mechanism. The receptacle supports back wiring with push-in connections and accommodates wire sizes from 10 AWG to 14 AWG.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Connection Orientation: Straight

  • Contact Material: Copper Alloy

  • Current Rating: 20 A

  • NEMA Configuration: 5-20R duplex type with two outlets

  • Wire Connection Type: Push In; Back wiring method

  • Grounding: Grounded; Number of Poles: 2; Number of Wires: 3; Phase: Single

  • Thermoplastic housing (Ivory)

  • Hospital Grade construction

  • Spring termination design

  • Triple and double wipe contacts enhance electrical connection reliability

  • Easy access split circuit tab allows flexible circuit configuration

  • NEMA Enclosure Rating: Type 1; IP Rating: IP20 (for dry indoor environments)

  • Operating Temperature Range: -40°F to 167°F maximum temperature rating

  • Includes mounting hardware for surface mount installation (non-flanged hub type)

  • Certain standards met including UL 498 File No E2186, CSA Certified C22.2 No.42 File285, Fed. Spec. W-C-596, NEMA WD-6
