  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

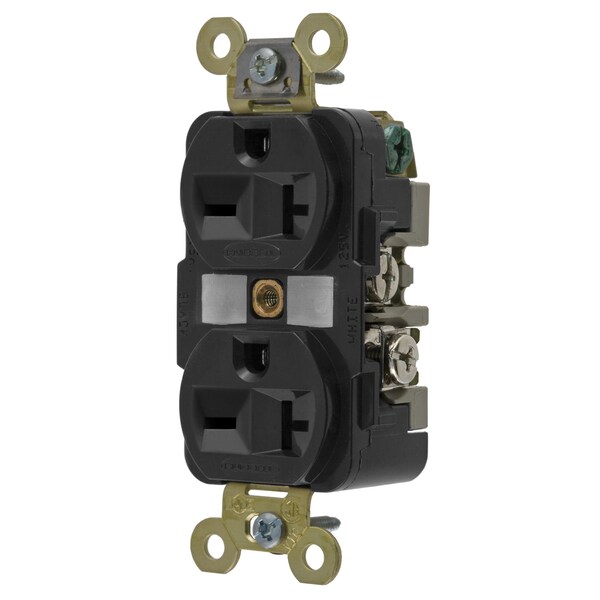

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5462BK - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5462BK

  • Zoro # G700622615

product price: $40.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5462BK
Zoro #
G700622615
UPC #
783585357737
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.65 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Length
3.28 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL Listed
Resistance Properties
impact resistance
Flange Type
Non-Flanged
Type
Standard Duplex
Color
Black
Series
Extra Heavy Duty
Amperage
20 A
Weight
0.25 lb
Dielectric Strength
Withstands 2,000V minimum
Maximum Horsepower
2
Carton Quantity
10
Mounting Hardware Material
Screw Mounting
UPC
783585000000
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Connectivity
Back and Side Wired Screw Terminals
Wattage
5000 W
Nema Rating
6-20R
Number Of Wires
3-Wire
Style
Finder Groove Face
Application
Extra Heavy Duty
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Brand
Hubbell Wiring Device-Kellems
Standard
NEMA
Mounting Strap Material
.050" (1.3) Brass
Receptacle Style
Duplex
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Top Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Grade
Heavy Duty Spec Grade
Horsepower
2
Poles and Wires
2 Pole, 3-Wire Grounding
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., Top: UL 94V-2, Base: UL 94V-0
Base Material
Reinforced PET
Product Type
Flush-receptacles
Face Style
Finder Groove
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Ivory, Gray, Black
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
20A, 250V
Mounting Screw Material
Stainless Steel
Device Color
Black
Current Interrupting
Certified for current interrupting at full rated current
Power Contacts Material
.037" (.9) Brass
Auto Ground Clip Material
Stainless Steel
Face Shape
Traditional

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, DuplexReceptacle, Industrial Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R,Black
