  11. Straight Blade Receptacle, Non-NEMA, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

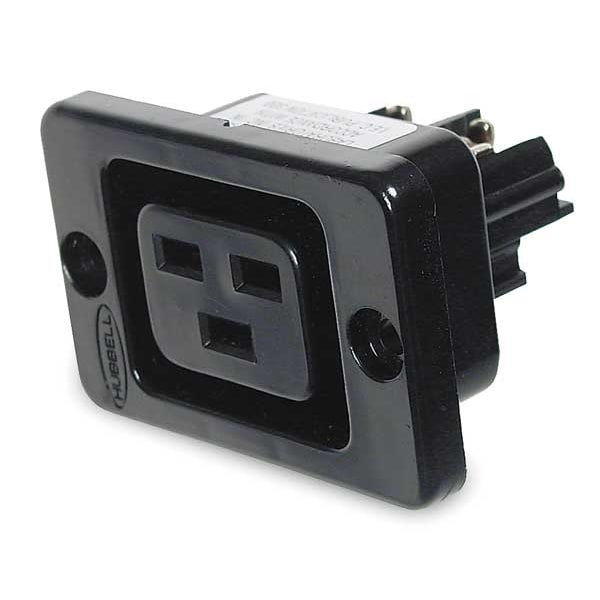

Hubbell Wiring Device-Kellems Straight Blade Receptacle, Non-NEMA, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded H320R - main

Straight Blade Receptacle, Non-NEMA, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # H320R

  • Zoro # G0842965

product price: $14.58
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H320R
Zoro #
G0842965
UPC #
783585777054
Country of Origin
United States

Dimensions

Height
1.52 in
Width
1.89 in
Maximum Wire Size
12 AWG
Overall Depth
1.5 in
Minimum Wire Size
16 AWG
Mount Hole Center-to-Center Width
1.9 in
Face Plate Height
1.5 in
Wire Size
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
Dimensions
1.41 in x 1.89 in x 1.52 in
Display Size
Standard Sized Product
Length
1.41 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified 17337, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
Non-NEMA
Outlet Type - Plugs and Receptacles
Single
Tamper Resistant
No
Number of Gangs
1
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Panel
Application Environment
Industrial
Outlet Type
Single
Voltage
250VAC
Mounting Type
Panel
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Terminal Screw
NEMA Configuration
Non-NEMA
Material
Nylon
Weather Resistant
No
Type
IEC
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Hardware
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Cover Type
No Cover
Housing Material
Nylon
Surge Protection
No
Market
Industrial
Contact Material
Brass
Connection Orientation
Straight
Grade
General Use
NEMA Enclosure Rating
1
AFCI
No
For Location
Indoor
UL 94 Flammability Rating
V-0
Polarized
Yes
Standard
IEC 320
Certification
UL Listed 20A 250V AC-File No. E2186; CSA certified 20A 250V AC-File No 17337, TUV certified at 16A 250V AC File No. E0077112.07.
Device Color
Black
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 V0
Terminal Accommodation
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
Retainer Material
Nylon-Black
IEC Product
Receptacle
Terminal Screw Material
Steel
Ground Screw Material
Steel
Base Material
Nylon
Contact Blades Material
.040" (1.0) Brass
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.032" (.81) Brass
Current Interrupting
Certified for current interrupting at full rated current.
Poles and Wires
2-pole + earth.
Rating
16A 250V AC for European service; 20A 250V AC for North American service
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
CSA certified 20A 250V AC-File No. 17337 UL Listed 20A 250V AC-File No. E2186
Wattage
7500 W
Application
Heavy Duty
Performance
Electrical:Dielectric Voltage Withstands 2,000V minimum,Rating 16A 250V AC for European service 20A 250V AC for ,North American service Mechanical:Terminal Accommodation North American to #16-12 AWG stranded or solid copper conductor only. International to 1.55mm²-2.5mm² ,Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental:Flammability UL 94 VO ,Operating Temperatures Maximum continuous 75°C minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
Non-NEMA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 16/20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified 17337, UL E2186, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, AFCI No
