  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Black

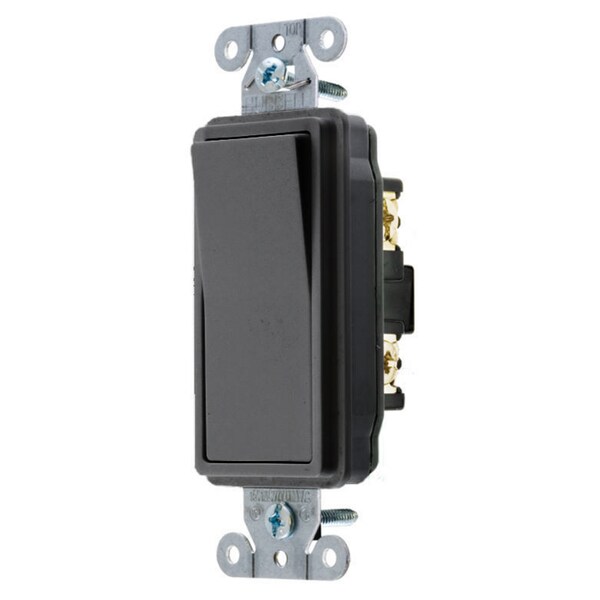

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Black DS115BK - main

Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Black

  • Mfr # DS115BK

  • Zoro # G900701295

product price: $16.19
/ea

Key Features

Switch Type
Single Pole
Color
Black
Height
1.54 in
Length
4.28 in
Style
Single Pole
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS115BK
Zoro #
G900701295
UPC #
783585154404
Country of Origin
China

Dimensions

Height
1.54 in
Length
4.28 in
Width
1.43 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.28 in x 1.43 in x 1.54 in

Details

Item
Single Pole Style Line Decorator Switch
Switch Type
Single Pole
Color
Black
Style
Single Pole
Voltage
120/277V AC
Type
Rocker/Decorator
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current Rating
15 A
Amperage
15 A
Voltage Rating
120-277 VAC
Connectivity
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Series
General Purpose
Carton Quantity
10
Material
Thermoplastic
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Listing and Certifications
UL Listed and CSA Certified
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
15A
Wiring Style
Back and Side Wired
Switch Handle Positions
2
Rocker Color
Black
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Switch Grade
Decorator Series
Amperage Rating
15 A
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Item Type
Single Pole Style Line Decorator Switch
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Single Pole, 15A 120/277V AC, Back and SideWired, Black
