  11. Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 20A 120/277V AC, Back and SideWired, Black

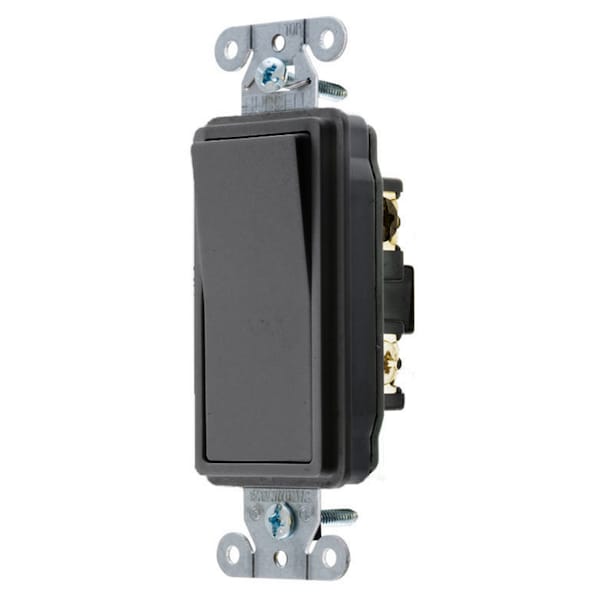

Hubbell Wiring Device-Kellems Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 20A 120/277V AC, Back and SideWired, Black DS320BK - main

Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 20A 120/277V AC, Back and SideWired, Black

  • Mfr # DS320BK

  • Zoro # G400701580

product price: $37.85
/ea

Key Features

Switch Type
Three Way
Color
Black
Type
Rocker/Decorator
Length
3.91 in
Width
1.41 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS320BK
Zoro #
G400701580
UPC #
783585154473
Country of Origin
China

Dimensions

Length
3.91 in
Width
1.41 in
Height
1.01 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.91 in x 1.41 in x 1.01 in

Details

Item
Three Way Style Line Decorator Switch
Switch Type
Three Way
Color
Black
Type
Rocker/Decorator
Style
Three Way
Voltage
120/277V AC
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Series
General Purpose
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
20 A
Connectivity
Back and Side Wired
Action
SPDT
Temp. Rise
30°C maximum at rated current
Carton Quantity
10
Current Rating
20 A
Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Switch Grade
Decorator Series
Switch Handle Positions
2
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Product Type
Toggle-switches
Flammability
UL 94V-2
Listing and Certifications
UL Listed and CSA Certified
Wiring Style
Back and Side Wired
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Rocker Color
Black
Item Type
Three Way Style Line Decorator Switch
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Three Way, 20A 120/277V AC, Back andSideWired, Black
