  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Ivory

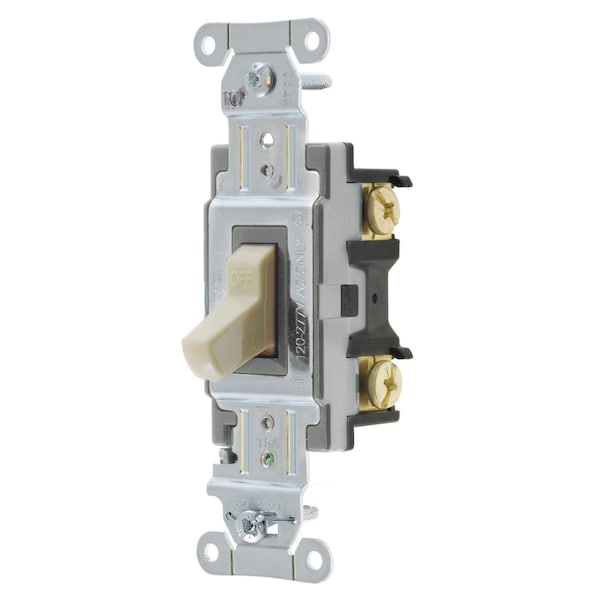

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Ivory CSB215I - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Ivory

  • Mfr # CSB215I

  • Zoro # G600701243

product price: $10.35
/ea

Key Features

Switch Type
Double Pole
Color
Ivory
Voltage
120/277V AC
Style
Double Pole
Width
1.49 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CSB215I
Zoro #
G600701243
UPC #
783585153834
Country of Origin
China

Dimensions

Width
1.49 in
Height
1.83 in
Length
4.18 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Double Pole Commercial Toggle Switch
Switch Type
Double Pole
Color
Ivory
Voltage
120/277V AC
Style
Double Pole
Type
Toggle
Series
General Purpose
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Number Of Poles
Double Pole
Temp. Rise
30°C maximum at rated current
Amperage
15 A
Current Rating
15 A
Voltage Rating
120-277 VAC
Connectivity
Back and Side Wired
Material
Nylon
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Color
Ivory
Switch Handle Positions
2
Product Type
Toggle-switches
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Max. Working Voltage
277V AC
Max. Continuous Current
15A
Switch Grade
Specification Grade
Wiring Style
Back and Side Wired
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Temperature Rise
30°C maximum at rated current
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Item Type
Double Pole Commercial Toggle Switch
Current / Amperage Rating
15 A
Amperage Rating
15 A
Industry Standard(s)
UL Listed

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and SideWired, Ivory
