  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Gray

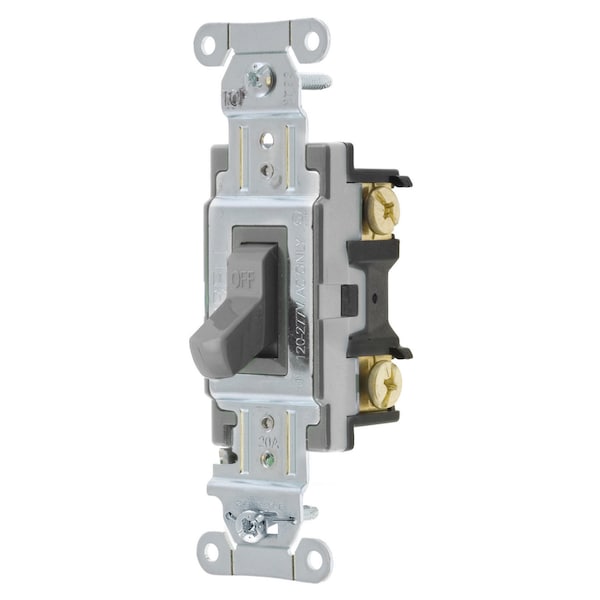

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Gray CSB220GY - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Gray

  • Mfr # CSB220GY

  • Zoro # G900701066

product price: $12.30
/ea

Key Features

Switch Type
Double Pole
Color
Gray
Width
1.49 in
Voltage
120/277V AC
Length
4.18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB220GY
Zoro #
G900701066
UPC #
783585154145
Country of Origin
China

Dimensions

Width
1.49 in
Length
4.18 in
Height
1.83 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Item
Double Pole Commercial Toggle Switch
Switch Type
Double Pole
Color
Gray
Voltage
120/277V AC
Type
Toggle
Style
Double Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
20 A
Number Of Poles
Double Pole
Temp. Rise
30°C maximum at rated current
Series
General Purpose
Connectivity
Back and Side Wired
Current Rating
20 A
Voltage Rating
120-277 VAC
Carton Quantity
10
Material
Nylon
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions
2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Product Type
Toggle-switches
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Wiring Style
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Toggle Color
Gray
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Grade
Specification Grade
Max. Continuous Current
20A
Flammability
UL 94V-2
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Amperage Rating
20 A
Item Type
Double Pole Commercial Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and SideWired, Gray
