  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, Light AlmondToggle

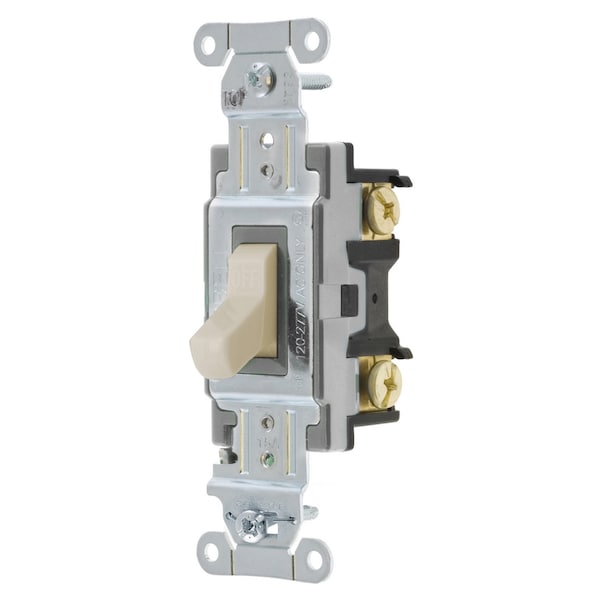

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, Light AlmondToggle CS115LA - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, Light AlmondToggle

  • Mfr # CS115LA

  • Zoro # G700701860

product price: $4.14
/ea
Sold in multiples of 2 for $8.28

Key Features

Switch Type
Single Pole
Color
Light Almond
Length
4.18 in
Height
1.83 in
Series
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS115LA
Zoro #
G700701860
UPC #
783585151205
Country of Origin
China

Dimensions

Length
4.18 in
Height
1.83 in
Width
1.49 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Toggle Switch
Switch Type
Single Pole
Color
Light Almond
Series
General Purpose
Material
Nylon
Style
Single Pole
Type
Toggle
Voltage
120/277V AC
Temp. Rise
30°C maximum at rated current
Carton Quantity
10
Connectivity
Side Wired Only
Current Rating
15 A
Number Of Poles
Single Pole
Voltage Rating
120-277 VAC
Amperage
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Wiring Style
Side Wired Only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Continuous Current
15A
Max. Working Voltage
277V AC
Switch Handle Positions
2
Temperature Rise
30°C maximum at rated current
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Toggle Color
Light Almond
Switch Grade
Specification Grade
Item Type
Single Pole Toggle Switch
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired,Light Almond
