  9. Tapping Tee, Ser 15, Taper Nose, Blk

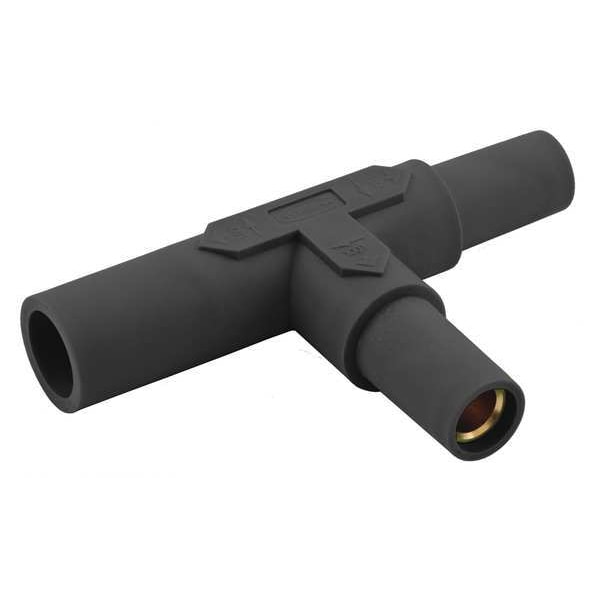

Hubbell Wiring Device-Kellems Tapping Tee, Ser 15, Taper Nose, Blk HBL15TBK - main

Tapping Tee, Ser 15, Taper Nose, Blk

  • Mfr # HBL15TBK

  • Zoro # G7242024

product price: $90.59
/ea
Free Shipping & Returns

Key Features

Type
Tee
Series
15
Male/Female
Female-Female-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15TBK
Zoro #
G7242024
UPC #
783585458625
Country of Origin
China

Dimensions

Overall Length
4.28 in
Overall Height
2.67 in
Overall Width
0.86 in
Display Size
Standard

Details

Item
Tapping Tee
Type
Tee
Series
15
Male/Female
Female-Female-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Amps AC/DC
150AC/DC
Color
Black
Material
Thermoplastic Elastomer
Standards
cUL, UL
Fits
UL1691
Amps AC
150 A
Mounting
Tee, Tapping Tee Female-Female-Male
Product Type
Paralleling Tee
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Housing Color
Black
Housing Material
Thermoplastic Elastomer
Compatible with Series
15
Gender Configuration
Female-Male-Female
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Tapping Tee Female-Female-Male
Number Of Poles
1-Pole
Item Type
Tapping Tee
Amperage Rating
150 A
Connectivity
Plug-In
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Current / Amperage Rating
150 A
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Application
Temporary Electrical Power
Insulation
Insulated Body
Number Of Conductors
1 Conductor
Voltage Rating Description
600V AC/DC

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Tapping Tee
• 150 Amp Series
• Black
