Plugs and Receptacles
- Mfr # 16R24-UW
- Zoro # G222587348
product price:Â
$
31.35
/ea
Key Features
NEMA Enclosure Rating
3R
End Type
Taper Nose
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Series
16
Flange Shape
Square
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R24-UW
- Zoro #
- G222587348
- UPC #
- 78477717349
- Country of Origin
- Mexico
- NEMA Enclosure Rating
- 3R
- End Type
- Taper Nose
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Series
- 16
- Flange Shape
- Square
- Item
- Single Pole Receptacle
- Minimum Operating Temperature
- -40 Degrees F
- Terminal Connection Type
- Threaded Stud
- Contact Material
- Brass
- Voltage Rating
- 600V AC, 600V DC
- Housing Color
- White
- Current Rating
- 400 A
- Housing Material
- Santoprene TPV
- For Location
- Outdoor
- Standards
- UL/CSA 1691
- Connection Orientation
- Angled
- Maximum Operating Temperature
- 185 Degrees F
- Mounting Style
- Through Hole Mounting
- Gender
- Female
Description

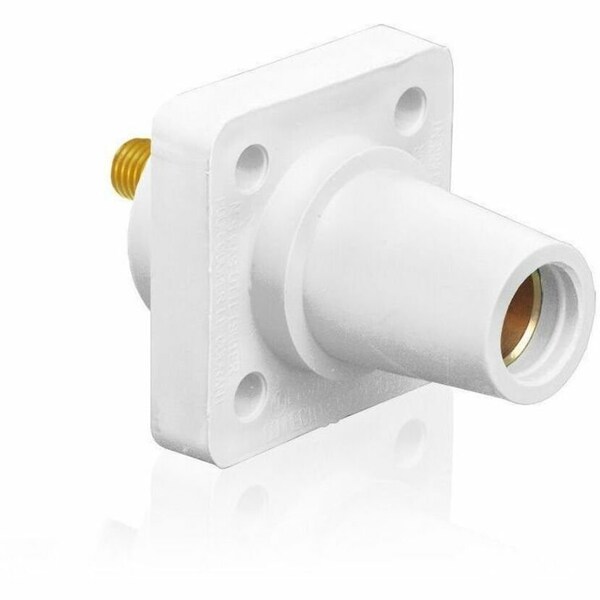

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
