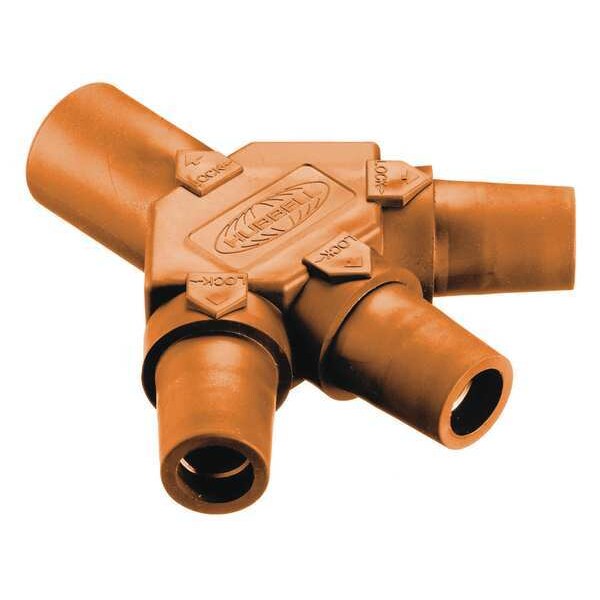

Triple Connctr, Male-Female-Female-Female

  • Mfr # HBLM3FO

  • Zoro # G0110885


product price: $231.99
/ea
Free Shipping & Returns

Key Features

Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLM3FO
Zoro #
G0110885
UPC #
783585112794
Country of Origin
China

Dimensions

Overall Height
5.88 in
Overall Length
5.78 in
Overall Width
1.48 in

Details

Item
Triple Connector
Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Single Pole Device Style
Taper Nose
Fits
UL1691
Conductor Material
Brass
Standards
cUL, UL
Material
Thermoplastic Elastomer
Amps AC/DC
300/400AC/DC
Color
Orange
Product Type
3-Fer
Compatible with Series
16
NEMA Enclosure Rating
12, 3R, 4X
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass
Gender Configuration
Male-Female-Female-Female
Maximum Operating Temperature
75 Degrees C
Housing Color
Orange
Housing Material
Thermoplastic Elastomer
Current / Amperage Rating
400 A
Application
High Ampacity
Style
3-Fer Male-Female-Female-Female
Voltage Rating Description
600V AC/DC
Number Of Pins
1) In, 3) Out- Male-Female-Female-Female
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Wattage
360000
Amperage Rating
400 A
Item Type
Tri-Taps
Industry Standard(s)
UL 498 And UL1691
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Insulation
Insulated Body

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male-Female-Female-Female
• Tri-Tap
