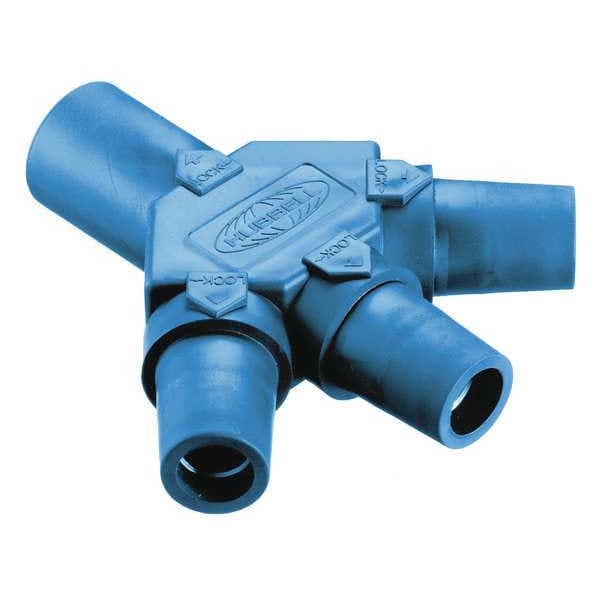

Triple Connector, Blu, 300/400AC/DC, Taper
Mfr # HBLM3FBL
Zoro # G7185954
product price: $231.43
/ea
Free Shipping & Returns
Key Features
Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBLM3FBL
Zoro #
G7185954
UPC #
783585112763
Country of Origin
China
Dimensions
Overall Length
5.78 in
Overall Width
1.48 in
Overall Height
5.88 in
Description
The HUBBELL Triple Connector, Series 16, is a single pole device rated for high ampacity electrical power distribution. This tri-tap connector features a male-female-female-female configuration and is constructed with an insulated thermoplastic elastomer housing and brass contacts. It supports both AC and DC applications up to 400 amps and voltage ratings of 600V AC or 250V DC, making it suitable for demanding temporary power setups where multiple connections are required.
Key Features of the HUBBELL Triple Connector:
- Amperage Rating: Rated for up to 400 A (300/400AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Configuration: Male-Female-Female-Female tri-tap design
- Material: Brass conductor/contact; thermoplastic elastomer housing
- Insulation: Insulated body
- NEMA Enclosure Ratings: Meets NEMA Type 12, 3R, and 4X requirements
- Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation
- Industry Standards: Complies with UL498, UL1691, cUL certifications
- Compatible Series: Compatible with Series 16 devices; fits UL1691 standard connectors
