  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Gray, 1,200 sq ft, Fluorescent, LED
Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Gray, 1,200 sq ft, Fluorescent, LED WS2000NGY - main

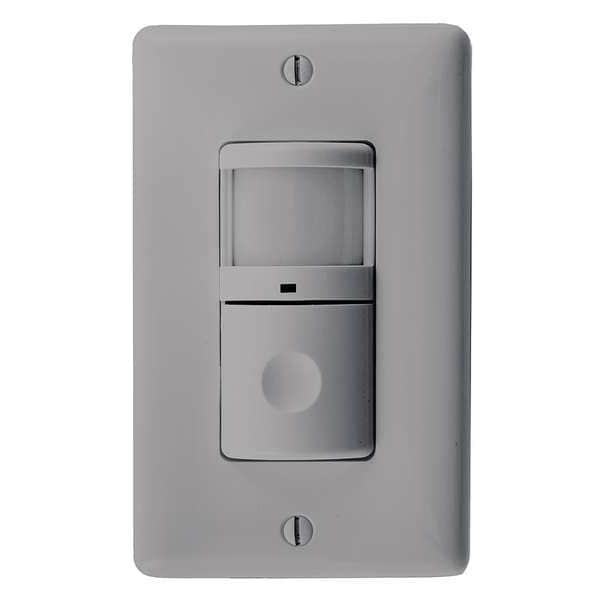

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Gray, 1,200 sq ft, Fluorescent, LED

  • Mfr # WS2000NGY

  • Zoro # G6392233

product price: $100.17
/ea
Free Shipping & Returns

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
1,200 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC, 277 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS2000NGY
Zoro #
G6392233
UPC #
783585256825
Country of Origin
Taiwan, Province of China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Height
1.62 in
Width
1.82 in
Overall Width
1.82 in
Minimum Mounting Height
42 in
Overall Height
1.62 in
Overall Depth
4.15 in
Maximum Mounting Height
54 in
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)
Length
4.15 in

Details

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC, 277 V AC
Color - Motion Sensing and Dimming
Gray
Time Delay Adjustment Method - Motion Sensor
Manual
Time Delay - Motion Sensor
20 sec to 30 min
Color
Gray
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Sensor Type
Passive Infrared
Time Delay
Manual
Installation Type
Wall
Includes
Night Light, Nylon Wall Plate, Photocell
Watts @ 120V
1000
Item
Motion Sensor with Nightlight
Standards
cULus Listed to UL773A
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Description/Special Features
3-Way Capable, Selectable Manual/Auto-On Operation, Tamper Resistant Lens
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Watts @ 277V
1800
Timer Range
20 sec. to 30 min.
Coverage
1200 sq. ft.
Viewing Angle
180 Degrees
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Communication Method
Hard Wired
Number of Gangs
1
Type
Manual/Auto
Wall Plate
Included
Series
H-Moss
Number of Buttons
1
Coverage Angle
180 Degrees
Minimum Time Delay
20 sec
Time Delay Adjustment Method
Manual
Dimming Type
No Dimming
Includes Motion Sensor
Yes
Sensor Operation
Occupancy, Vacancy
Horsepower Rating
3/16 hp
Fan Rated
No
Load Rating @ 120V AC
1,000W (Incandescent)
Installation Location
Wall
Includes Dimming Switch
Dimming Switch Not Included
Neutral Required
No
Dimming Method
No Dimming
Load Rating @ 277V AC
1,000W (Incandescent)
Illuminated
Yes
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Nightlight
Yes
Manufacturer Warranty
5 yr
Maximum Time Delay
30 min
Maximum Coverage Area
1,200 sq ft
Includes Wall Plate
Wall Plate Included
Material
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Passive Infrared
Red LED
Indicator(s) Type
PIR= Red LED
Housing
Flame retardant UL 94 V-0 ABS
Ambient Light
Photocell, 10 to 500 foot candles
Humidity
20% to 90% non-condensing relative humidity
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Industry Standard(s)
cULus Listed To UL773A
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Service Switch
OFF (service); vacancy (manual-ON); occupancy (auto-ON)
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Photocell
Yes
Storage Temperature Range
-40°F to 150°F (-40°C to 65°C)
SS Wallplate
SS26
Mounting Strap
Steel
Lens
Polyethylene
Operating Voltage
120 to 277V AC

Description

Motion Sensor with Nightlight, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,000W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color Gray, Nightlight Yes, Dimming Method No Dimming, Dimming Type No Dimming
