  11. Wall Switch, Ivory, 1/2 HP, 1-Pole Switch
Hubbell Wiring Device-Kellems Wall Switch, Ivory, 1/2 HP, 1-Pole Switch CSB115I - main

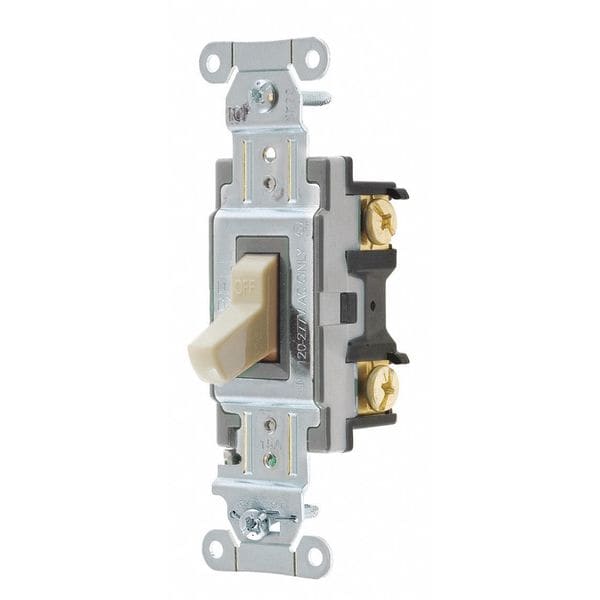

Wall Switch, Ivory, 1/2 HP, 1-Pole Switch

  • Mfr # CSB115I

  • Zoro # G4440217

product price: $6.49
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CSB115I
Zoro #
G4440217
UPC #
783585153766
Country of Origin
China

Dimensions

Overall Height
1.8 in
Minimum Wire Size
14 AWG
Overall Width
1.5 in
Maximum Wire Size
10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Standards
UL Listed
Antimicrobial
No
Rated HP
1/2
Description/Special Features
Quiet Switch
Voltage
120/277V AC
Switch Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Horsepower Rating
1/2 hp
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Wire Connection Type
Screw Terminals
Number of Switches
1
Maximum Operating Temperature
75 Degrees C
Market
Commercial
Current Rating
15 A
Housing Material
Nylon
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Max. Continuous Current
15A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Amperage
15A
Flammability
UL 94V-2
Toggle Color
Ivory
Switch Grade
Specification Grade
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Handle Positions
2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Wall Switch, Color Ivory, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Housing Material Nylon, Market Commercial
