  11. Wall Swtch, 1-Pole, 120/277V, 15A, Gry, Toggl

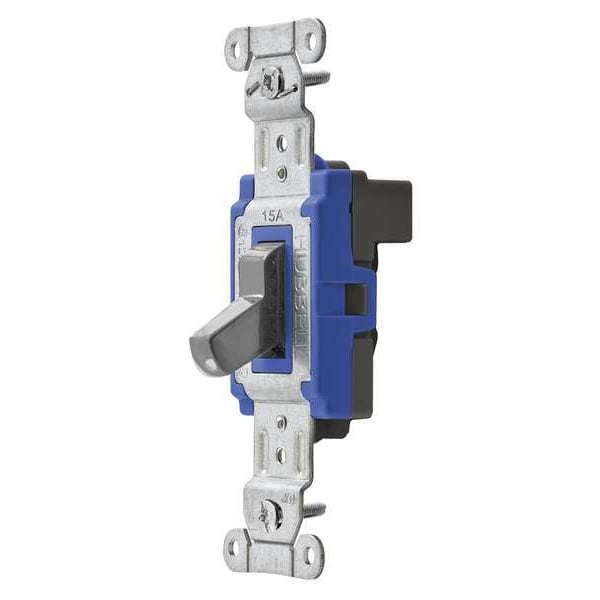

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 15A, Gry, Toggl SNAP1201GY - main

Wall Swtch, 1-Pole, 120/277V, 15A, Gry, Toggl

  • Mfr # SNAP1201GY

  • Zoro # G4585393

product price: $10.29
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201GY
Zoro #
G4585393
UPC #
783585186474
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Length
4.18 in
Height
1.74 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Rated HP
1/2 to 2
Standards
UL Listed
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Housing Material
Thermoplastic
Market
Industrial
Horsepower Rating
2 hp
Wire Connection Type
Modular Wiring
Voltage Rating
120/277V AC
Resistance Properties
Impact Resistant
Number of Switches
1
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Maximum Operating Temperature
75 Degrees C
Current Rating
15 A
Type
Toggle
Style
Single Pole
Max. Continuous Current
15A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Material
Thermoplastic
Toggle Color
Gray
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Face Material
Thermoplastic, Blue
Base Material
Thermoplastic, Black
Overload
Minimum 4.8 times rated current for 100 cycles
Contacts
Silver Alloy
Terminal Accommodations
Uses SNAPConnect Connector
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminals
Brass
Amperage Rating
15 A
Current / Amperage Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Series
General Purpose
Item Type
Single Pole Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Number Of Poles
Single Pole

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
