  11. Wall Swtch, 1-Pole, 120/277V, 15A, Red, Toggl

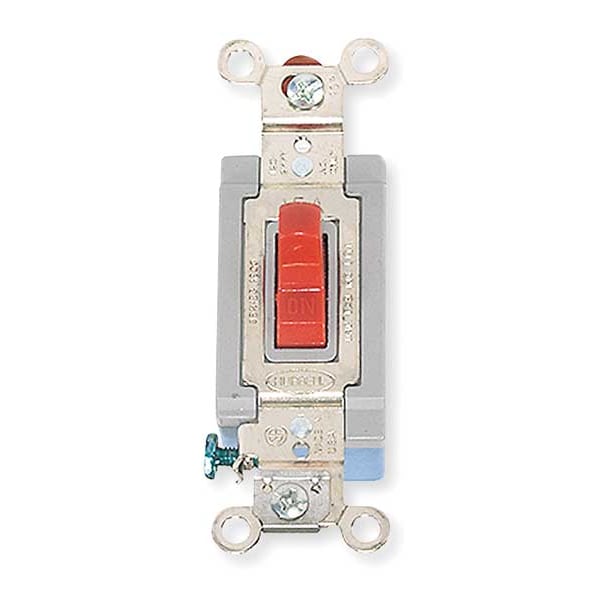

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 15A, Red, Toggl HBL1201R - main

Wall Swtch, 1-Pole, 120/277V, 15A, Red, Toggl

  • Mfr # HBL1201R

  • Zoro # G0335343

product price: $20.29
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1201R
Zoro #
G0335343
UPC #
783585430126
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Width
1.3 in
Overall Height
1.9 in
Height
1.87 in
Length
4.06 in
Width
1.31 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Rated HP
1/2
Antimicrobial
No
Voltage
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Wire Connection Type
Screw Terminals
Voltage Rating
120/277V AC
Horsepower Rating
1/2 hp
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Current Rating
15 A
Number of Switches
1
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Switch Material
Nylon
Maximum Operating Temperature
75 Degrees C
Style
Single Pole
Type
Toggle
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Grade
Industrial
Max. Continuous Current
15A
Switch Handle Positions
2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Amperage
15A
Max. Working Voltage
277V AC
Toggle Color
Red
Flammability
UL 94V-2
Wiring Style
Back and Side Wired
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
15 A
Series
Extra Heavy Duty
Industry Standard(s)
UL Listed
Application
Back and Side Wired
Number Of Poles
Single Pole
Amperage Rating
15 A
Voltage Rating Description
120-277 VAC

Description

Wall Switch, Color Red, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
