  11. Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Press

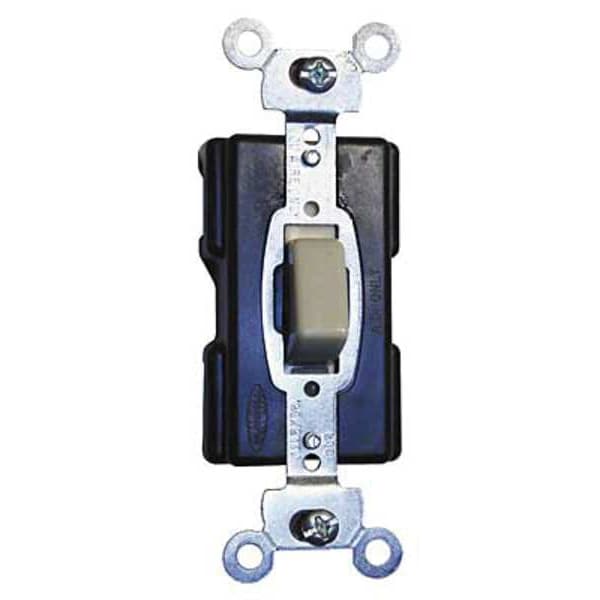

Hubbell Wiring Device-Kellems Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Press HBL1283I - main

Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Press

  • Mfr # HBL1283I

  • Zoro # G1872902

product price: $48.29
/ea

Key Features

Switch Type
3-Way
Switch Style
Push Button
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1283I
Zoro #
G1872902
UPC #
783585016887
Country of Origin
United States

Dimensions

Overall Width
1.5 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Height
1.5 in
Height
1.45 in
Width
1.5 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.5 in x 1.45 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Push Button
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Side
Application Environment
Commercial
Antimicrobial
No
Rated HP
1
Standards
UL Listed
Current Rating
20 A
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Resistance Properties
Impact Resistant
Maximum Operating Temperature
167 Degrees F
Number of Switches
1
Style
Three Way
Max. Continuous Current
20A
Actuator Type
Press
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Product Type
AC Special Purpose Switches
Rating
20A 120/277V
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Toggle Color
Ivory
Connectivity
Side Wired Only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Item Type
Three Way Toggle Switch
Series
General Purpose
Voltage Rating Description
120-277 VAC
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Amperage Rating
20 A
Action
SPDT
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A

Description

Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Push Button, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
