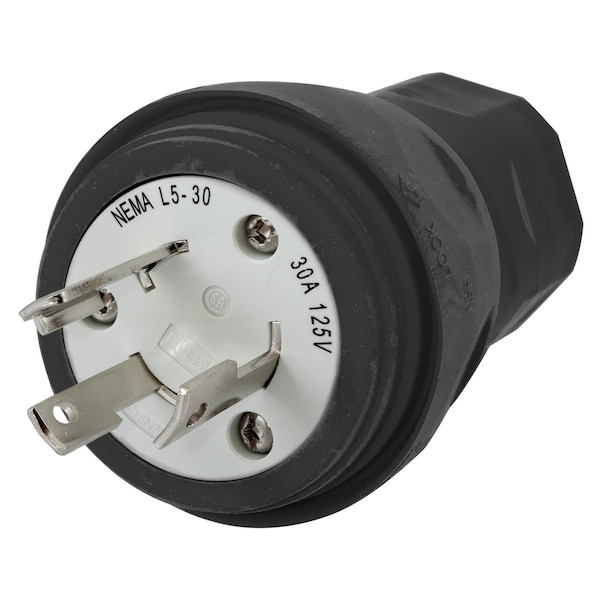

Hubbell Wiring Device-Kellems Watertight Devices, Twist-Lock Plug, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30P, Black HBL28W47BK - main

Watertight Devices, Twist-Lock Plug, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30P, Black

  • Mfr # HBL28W47BK

  • Zoro # G600701441

original price:  $74.69 , new price: $70.61 , 5 percent off
new price:  $70.61
/ea

Key Features

Width
2.77 in
Length
2.77 in
Color
Black
Height
3.94 in
Cord Diameter
0.375"-1.000" (9.5-25.4)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL28W47BK
Zoro #
G600701441
UPC #
783585131436
Country of Origin
United States

Dimensions

Width
2.77 in
Length
2.77 in
Height
3.94 in
Cord Diameter
0.375"-1.000" (9.5-25.4)
Dimensions
2.77 in x 2.77 in x 3.94 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Details

Color
Black
Max Working Voltage
As marked
UV resistance
All exposed materials are UV stabilized
Dielectric Voltage
2500V AC
Operating temperatures
-40°C (without impact) to +60°C continuous
Temperature Rise
30°C max per UL498 at rated current
Blade Holder
White Nylon
Current Interrupting
Rated for current interruption per UL498
Strain Relief Nut
PBT
Bushing & Cone Seal
Black Elastomer
Core
White Nylon
Gotcha Ring
Nylon
Moisture Resistance
UL Listed 4, 4X, 12, 6, 6P
Body
Thermoplastic Elastomer
Cord Accomodation
0.375"-1.000" (9.5-25.4)
Terminal Retainer
Clear polycarbonate
Watertight Connector
HBL29W47BK
Terminal Screws
Nickel Plated Brass
Blades
Nickel plated brass
Nema Rating
L5-30P
Item Type
30A Watertight Twist-Lock® Plug
Type
Plugs
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Industry Standard(s)
Meets NEMA WD-1, WD-6 And ANSI Standards
Amperage Rating
30 A
Voltage Rating Description
125 V
Current / Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Elastogrip,Male Plug, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal,Black, Water/Dust-Tight Housing
