Shop LEVITON

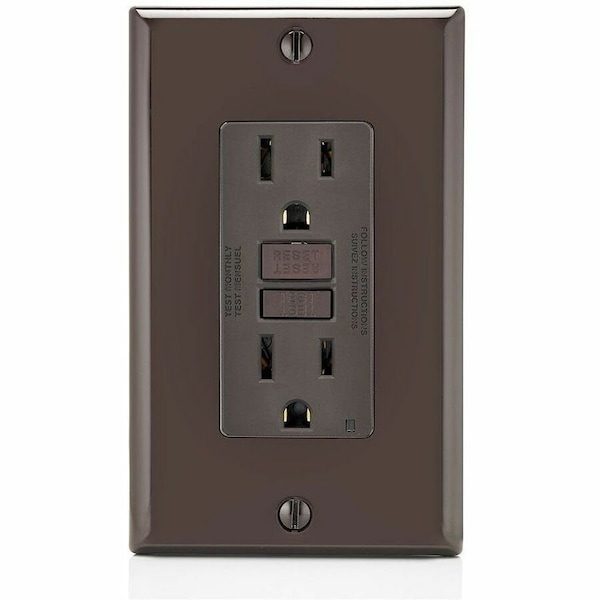

GFIRcptcl, 15A, 125VAC, Brn, Polycarbonate

  • Mfr # GFNT1

  • Zoro # G104393036

product price:  $20.39
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT1
Zoro #
G104393036
UPC #
07847771255
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V
Item - Plugs and Receptacles
GFCI Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Amps - Plugs and Receptacles
15 A
Self-Testing
Yes
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
Color - Plugs and Receptacles
Brown
Wiring Method
Side
Power Indicator
Yes
Surge Suppression
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Includes
Strap Material
Mount Type
Flush
Surge Protection
Yes
Market
Commercial, Residential
Features
Built-In Night Light
Horsepower Rating
1 hp
Self Testing
Yes
Grade
Federal Specification
Wire Connection Type
Screw Terminals
Contact Material
Brass
Receptacle Type
Decorator Duplex
Resistance Properties
Tamper Resistant
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Voltage Rating
125V AC
Minimum Operating Temperature
-31 Degrees F
Visual Indicator Lights
Power Connected
Status Indicator Lights
Power Connected
Flange Type
Non-Flanged
Number of Gangs
1
Number of Wall Plates Included
0
Shrouded
No
AFCI
No
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
