  6. Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

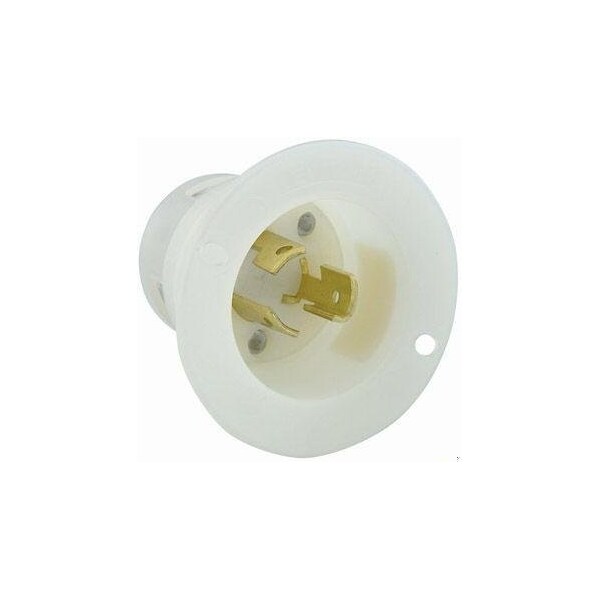

Leviton Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White 4716-C - main

Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 4716-C

  • Zoro # G116091289

product price:  $20.69
/ea

Key Features

NEMA Receptacle Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4716-C
Zoro #
G116091289
UPC #
078477795569
Country of Origin
Mexico

Dimensions

Flange Diameter
2.5 in
Overall Depth
1.8 in
Mount Hole Center-to-Center Width
0.94 in
Maximum Wire Size
10 AWG
Face Diameter
1.56 in
Minimum Wire Size
18 AWG
Mount Hole Center-to-Center Height
1.75 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI C-73, CSA C22.2 No 42 File LR-406, RoHS, UL 498 File E13393, UL Fed Spec WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Shrouded
Yes
NEMA Enclosure Rating
Not Rated
Flange Material
Nylon
Wiring Style
Standard
IP Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Flange Shape
Round
Maximum Operating Temperature
140 Degrees F
For Environment
Dry
Connection Orientation
Straight
NEMA Plug Configuration
L5-15P
Midget Locking
No
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Market
Industrial
Number of Blades
3
Number of Gangs
1
Features
Accepts Slotted and Phillips Head Drivers
Grade
Federal Specification
Series
Insulgrip
Number of Outlets
1
UL 94 Flammability Rating
V-2
Includes
Mounting Hardware
Polarized
Yes

Description

Fifteen Amp
