  11. Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount

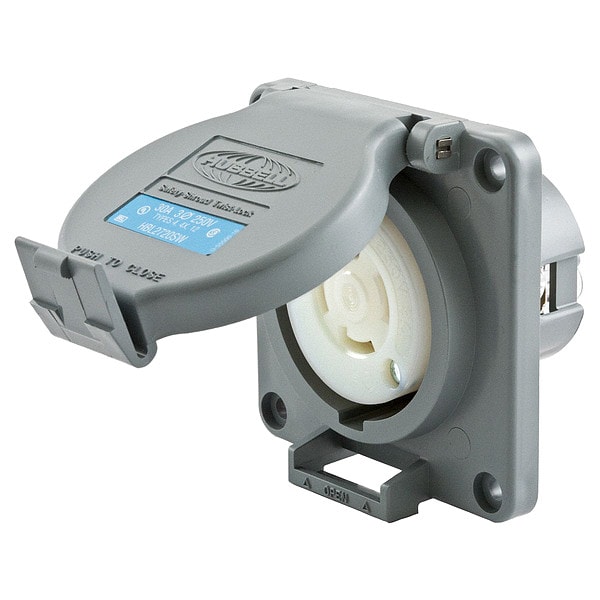

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount HBL2720SW - main

Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL2720SW

  • Zoro # G2111243

product price: $140.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2720SW
Zoro #
G2111243
UPC #
783585231822
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Cord Size
16 to 8 AWG
Wire Size
#16 AWG to #8 AWG
Length
3.75 in
Width
3.75 in
Height
2.9 in
Dimensions
3.75 in x 3.75 in x 2.9 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Flange Type
Flanged
Mounting Type
Flush Mount
Material
Reinforced Nylon
Special Features
With Locking Cover
Grade
Industrial
Wiring Style
Standard
Contact Material
Brass
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Valox
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Horsepower Rating
3 hp
Number of Gangs
1
Polarized
Yes
Weight
0.65 lb
Gasket Material
Closed-Cell Neoprene Foam
Screw Material
302/304 Stainless Steel
Flammability
UL 94 V0 (Receptacles and Inlets), HB or Better (Plugs and Connectors)
Dielectric Strength
2000V
Flange Material
Gray Valox
Retainer Material
Clear Polycarbonate
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
30 A
Application
Heavy Duty Industrial Shrouded Watertight
Material - Mounting Hardware
Screw Mounting
NEMA Rating
12, 4, 4X
Amps
30

Description

The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle.


The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle rated IP69K for water ingress protection in demanding environments. It features a high-impact thermoplastic housing and includes visual alignment indicators to assist with connection. This device supports three-phase power at 250V AC, rated for up to 30 amps, and includes an additional cover included for added protection during use.


Key Features of the HUBBELL 30A Watertight Flanged Locking Receptacle:

  • Amperage/Voltage: Rated for 30 A and 250V AC, suitable for three-phase applications

  • NEMA Configuration: L15-30R with straight connection orientation

  • Watertight Construction: IP69K rating

  • Material & Build: Reinforced nylon housing; brass contacts; gray Valox flange; clear polycarbonate retainer

  • Cord/Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals

  • Operating Temperature Range: -40°C to +75°C continuous operation without impact

  • Mounting Type: Flush mount design with screw mounting hardware included

  • Certifications & Standards: UL Listed, CSA Certified (Type 4, 4X, and Type 12 enclosures)

  • Special Feature: Includes locking cover and shrouded construction for shrouded construction
