Shop HUBBELL WIRING DEVICE-KELLEMS

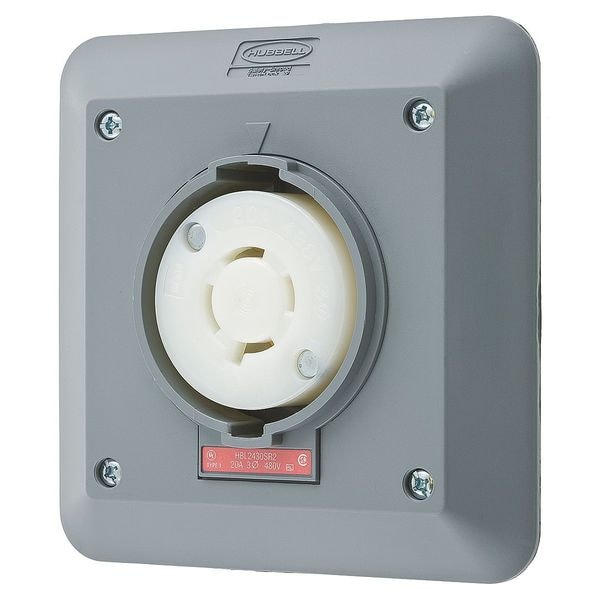

Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # HBL2430SR2

  • Zoro # G2827237

product price:
$
53.65
/ea

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2430SR2
Zoro #
G2827237
UPC #
783585234601
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Mounting Type
Semi Flush Mount
Wiring Style
Standard
IP Rating
IP20
Special Features
Corrosion resistant
Grade
Industrial
Material
Impact Modified PBT
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
Shrouded
Yes
Horsepower Rating
5 hp
For Location
Indoor
Connection Orientation
Straight
Polarized
Yes
AFCI
No
Market
Industrial
Housing Material
Valox
Number of Gangs
2
NEMA Enclosure Rating
12, 4X
Minimum Operating Temperature
-40 Degrees F
Lock Type
Twist-lock
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Spring Material
.031" Brass
Amps
20
UL 94 Flammability Rating
V-2

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
