  11. Watertight Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount

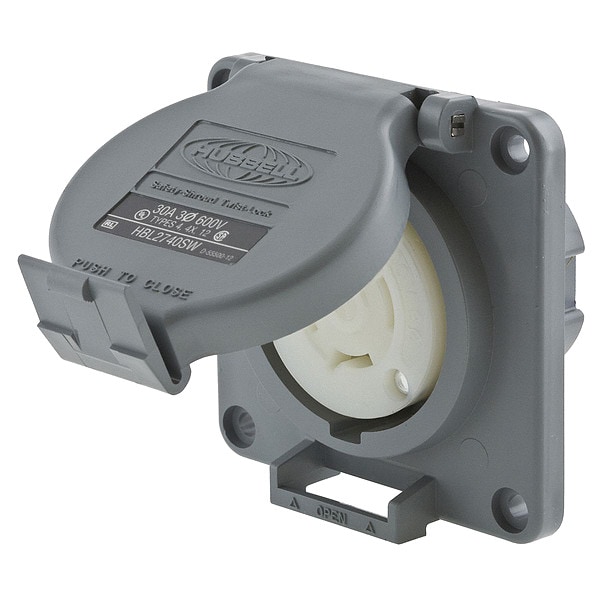

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount HBL2740SW - main

Watertight Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL2740SW

  • Zoro # G0726223

product price: $145.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2740SW
Zoro #
G0726223
UPC #
783585231983
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Cord Size
16 to 8 AWG

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Flange Type
Flanged
Material
Nylon
Wiring Style
Standard
Special Features
With Locking Cover
Mounting Type
Flush Mount
Grade
Industrial
Horsepower Rating
10 hp
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Housing Material
Valox
Polarized
Yes
Number of Gangs
1
AFCI
No
Contact Material
Brass
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Retainer Material
Clear Polycarbonate
Flange Material
Gray Valox
Gasket Material
Closed-Cell Neoprene Foam
Weight
0.65 lb
Flammability
UL 94 V0
Screw Material
302/304 Stainless Steel
Dielectric Strength
2000V
NEMA Rating
12, 4, 4X
Amps
30

Description

The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle intended for use in environments requiring watertight electrical connections. It features a three-pole, four-wire configuration rated for 600V AC and 30 amps, with a flush mount design appropriate for use in specified operating conditions. The device provides an IP69K and NEMA 4X/12 enclosure rating, providing protection against moisture and harsh conditions while in use or closed.


Key Features of the HUBBELL 30A Watertight Flanged Locking Receptacle:

  • Current/Voltage Rating: Rated for 30A at 600V AC

  • NEMA Configuration: L17-30R (3 pole, 4 wire)

  • Enclosure Ratings: IP69K; NEMA Type 4, 4X, and 12

  • Operating Temperature Range: -40 to 75°C (-40 to 167°F)

  • Housing Material: High-impact Valox thermoplastic with gray finish

  • Cord Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG

  • Contact Material: Brass contacts with screw terminal connections

  • Special Feature: Includes locking cover to help maintain the connection

  • Resistance Properties: Constructed with materials rated as moisture resistant and watertight per product specifications
