  6. Watertight Locking Connector, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

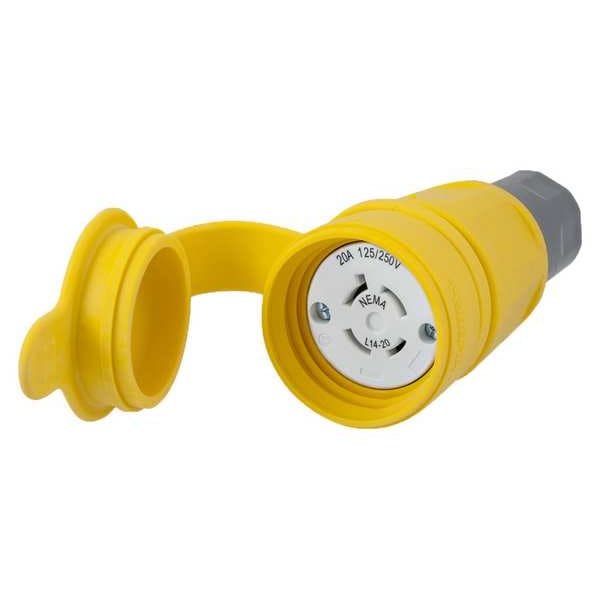

Hubbell Wiring Device-Kellems Watertight Locking Connector, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals HBL27W74 - main

Watertight Locking Connector, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # HBL27W74

  • Zoro # G9990732

product price:  $102.47
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL27W74
Zoro #
G9990732
UPC #
783585131795
Country of Origin
United States

Dimensions

Cord Size
0.325 in to 0.875 in
Outside Diameter
2.51 in
Overall Length
2.51 in
For Maximum Cable Diameter
0.875 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
For Minimum Cable Diameter
0.375 in
Length
2.51 in
Height
5.69 in
Width
2.51 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 5.69 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Grade
Industrial/Commercial
Material
Thermoplastic Elastomer, Valox
IP Rating
IP69K
Special Features
Corrosion resistant
Body Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Midget Locking
No
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
UL 94 Flammability Rating
HB
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Power Indicating Light
No
Horsepower Rating
2 hp
Bushing Material
Black Elastomer
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Antimicrobial
No
Power Indicator
No

Description

• Smooth body design minimizes collection points simplifying the wash down process
• Strain relief nut always seals on the body, minimizing debris collection
• Stainless steel hardware and corrosion-resistant connection points
