Shop HUBBELL WIRING DEVICE-KELLEMS

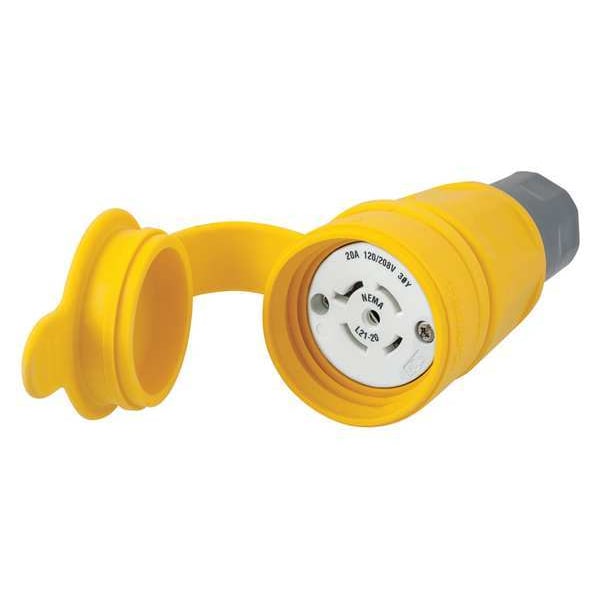

Watertight Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # HBL27W81

  • Zoro # G9990461

product price:  $170.10
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL27W81
Zoro #
G9990461
UPC #
783585131832
Country of Origin
United States

Dimensions

For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Outside Diameter
2.51 in
Overall Length
2.51 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
For Maximum Cable Diameter
0.875 in
Length
2.51 in
Height
5.69 in
Width
2.51 in
Dimensions
2.51 in x 2.51 in x 5.69 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Wire Rope Length
2.51 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
IP Rating
IP69K
Material
Thermoplastic Elastomer, Valox
Special Features
Corrosion resistant
Grade
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Midget Locking
No
UL 94 Flammability Rating
HB
Power Indicating Light
No
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
NEMA Rating
4, 4X, 6, 6P
Power Indicator
No
Antimicrobial
No
Power and Ground Indicating Light
No

Description

• Smooth body design minimizes collection points simplifying the wash down process
• Strain relief nut always seals on the body, minimizing debris collection
• Stainless steel hardware and corrosion-resistant connection points
