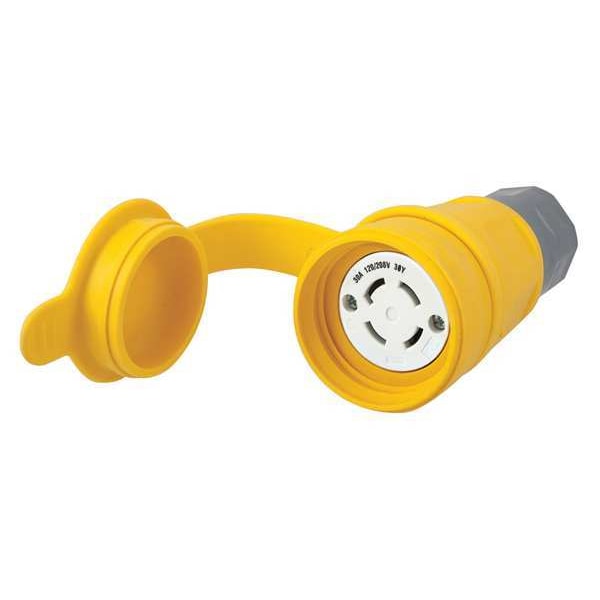

Watertight Locking Connector, Non-NEMA, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals
Mfr # HBL29W09
Zoro # G9990547
product price: $106.99
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL29W09
Zoro #
G9990547
UPC #
783585456454
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Overall Length
2.77 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Height
5.67 in
Width
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 5.67 in
Description
The HUBBELL 30A Watertight Locking Connector is a four-pole, four-wire connector body intended for use in industrial and commercial electrical applications where watertight connections are specified. Rated for 120/208V AC and 30 amps, this connector features a thermoplastic elastomer housing with a smooth surface to facilitate cleaning procedures. The unit accommodates cord sizes from 0.375 in to 1.125 in and utilizes screw terminals for wire connection.
Key Features of the HUBBELL 30A Watertight Locking Connector:
- Contact Material: Nickel-plated brass contacts for electrical conductivity.
- Housing Material: Thermoplastic elastomer and Valox housing materials used in construction.
- NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; UL Listed; IP69K protection against high-pressure washdowns
- Cord Accommodation: Accepts cable diameters between 0.375 in to 1.125 in; supports wire sizes from minimum of #18 AWG up to maximum of #8 AWG.
- Temperature Range: Operates continuously from -40°C to +60°C.
- Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL498 current interrupting rated; UV stabilized materials
- Connection Orientation & Style: Straight connection orientation with standard wiring style using screw terminals; grounded design with shrouded construction enhances installation suitability.
