  11. Watertight Locking Plug, L23-30P, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

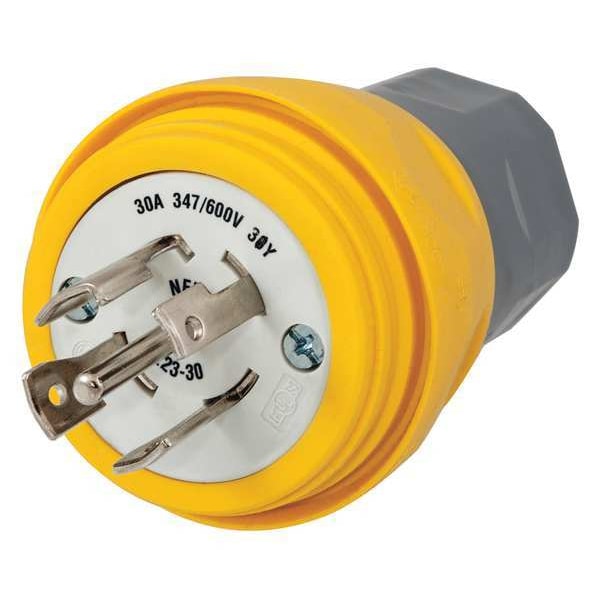

Hubbell Wiring Device-Kellems Watertight Locking Plug, L23-30P, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Yellow HBL28W83 - main

Watertight Locking Plug, L23-30P, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

  • Mfr # HBL28W83

  • Zoro # G0069636

product price: $102.60
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL28W83
Zoro #
G0069636
UPC #
783585131788
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Body Length
2.77 in
Outside Diameter
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Width
2.77 in
Height
3.94 in
Dimensions
2.77 in x 2.77 in x 3.94 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L23-30P
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Material
Thermoplastic Elastomer, Valox
Grade
Industrial
Special Features
Moisture, Dust and Weather Resistant
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Housing Material
Thermoplastic Elastomer
Polarized
Yes
Bushing Material
Black Elastomer
Dielectric Strength
3500V AC
Contact Material
Nickel Plated Brass
Body Material
Thermoplastic Elastomer
Retainer Material
Clear Polycarbonate
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Amps
30
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L23-30P, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.375 in, Grade Industrial, IP Rating IP69K
