  11. Watertight Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

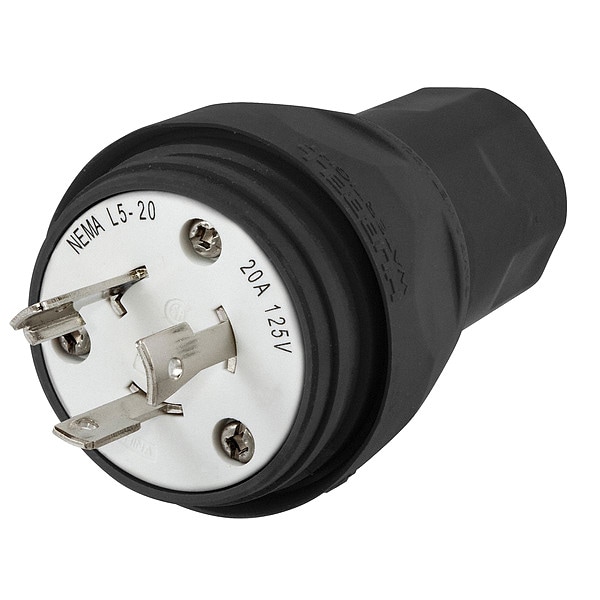

Hubbell Wiring Device-Kellems Watertight Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL26W47BK - main

Watertight Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL26W47BK

  • Zoro # G9990495

product price: $53.33
/ea

Key Features

NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26W47BK
Zoro #
G9990495
UPC #
783585131399
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Outside Diameter
2.51 in
Body Length
2.51 in
Length
2.51 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 3.96 in
Height
3.96 in
Width
2.51 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Housing Color
Black
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
Material
Thermoplastic Elastomer, Valox
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Polarized
Yes
Blade Material
Brass
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1/2 hp
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
2500V AC
Body Material
Thermoplastic Elastomer
Contact Material
Nickel Plated Brass
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
NEMA Configuration
L5-20
Amps
20
Antimicrobial
No

Description

The HUBBELL 20A Watertight Locking Plug (L5-20P) is an electrical plug rated for use in specified environments. Featuring a smooth body design and watertight construction; suitable for washdown procedures, this plug minimizes debris collection and simplifies washdown processes. It accommodates cords from 0.375 to 0.875 inches in diameter and is rated for single-phase, 125V AC operation at up to 20 amps.


Key Features of the HUBBELL 20A Watertight Locking Plug:

  • Material: Constructed with thermoplastic elastomer housing and nickel-plated brass blades and contacts for durability.

  • Moisture & Dust Resistance: Rated IP69K; UL Listed Types 4, 4X, 12, 6, and 6P for watertight performance.

  • Chemical & Impact Resistant: Rated for exposure to specified environmental factors.

  • UV Stabilized: Exposed materials are rated as UV resistant per manufacturer specifications.

  • Operating Temperature Range: -40°C to +60°C continuous operation.

  • NEMA Configuration: L5-20P locking configuration with polarized design

  • Cord Accommodation: Accepts cord sizes from 0.375" to 0.875" diameter; supports wire sizes ranging from minimum of 16/3 SJ or equivalent up to maximum of 10/3 S or equivalent types.

  • Screw Terminals: Standard wiring style using screw terminals for secure wire attachment.

  • Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements.
