Shop HUBBELL WIRING DEVICE-KELLEMS

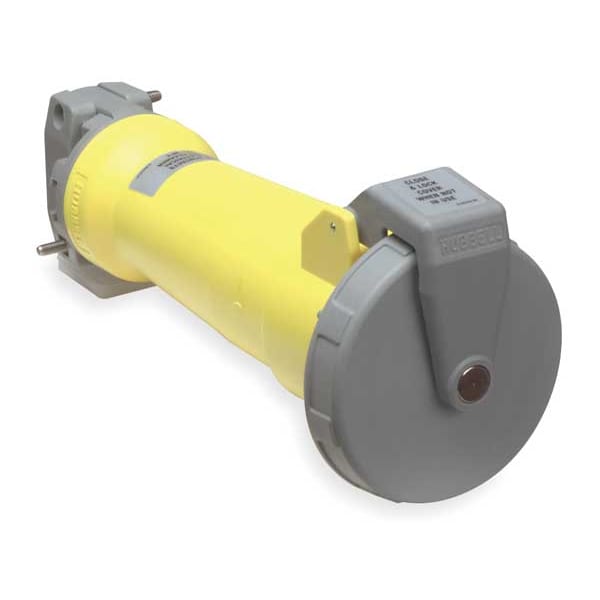

Watertight Pin & Sleeve Connector, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Yellow

  • Mfr # M4100C12

  • Zoro # G6663352

product price:
$
1,070.55
/ea
Free Shipping & Returns

Key Features

Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M4100C12
Zoro #
G6663352
UPC #
783585410029
Country of Origin
United States
Item
Watertight Pin & Sleeve Connector
Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Yellow
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Body Material - Pin and Sleeve
Nylon
Body Material
Nylon
Features
Pin Chamber Confines Arcing Within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal
Contact Material
Brass
For Location
Outdoor
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
For Environment
Marine
Power Indicating Light
No
Housing Material
PBT
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
V-0
Series
Insulgrip
Grounding
Grounded

Description

The HUBBELL Pin and Sleeve Connector is a 100A, 125/250V AC device suitable for locations requiring specified levels of resistance to corrosion, impact, moisture, and water ingress. This connector features a high-visibility nylon housing with nickel-plated solid brass pins for electrical contact. It includes a spring-loaded, gasketed cover that provides a dust-tight seal and neoprene sealing glands intended to help maintain terminations under specified environmental conditions.


Key Features of the HUBBELL Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 100A at 125/250V AC single-phase operation

  • Ingress Protection: IP67 rating and NEMA 4X enclosure suitable for outdoor use

  • Body Material: constructed from nylon body with PBT housing

  • Contact Material: nickel-plated solid brass pins provide long-lasting connections

  • Cable Accommodation: Accepts cable diameters from 1.065 in to 1.94 in; wire size range from 3 AWG to 1/0 AWG

  • Connection Type: Screw terminals with straight orientation; grounded IEC style

  • Pole/Wire Configuration: Three poles, four wires (grounded)

  • Construction rated as corrosion resistant, impact resistant, moisture resistant; IP67 rating

  • Operating Temperature Range: -40°C to +75°C maximum operating temperature

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1 & IEC 60309-2; UL E146033 listed
