  6. Watertight Pin & Sleeve Connector, 100 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

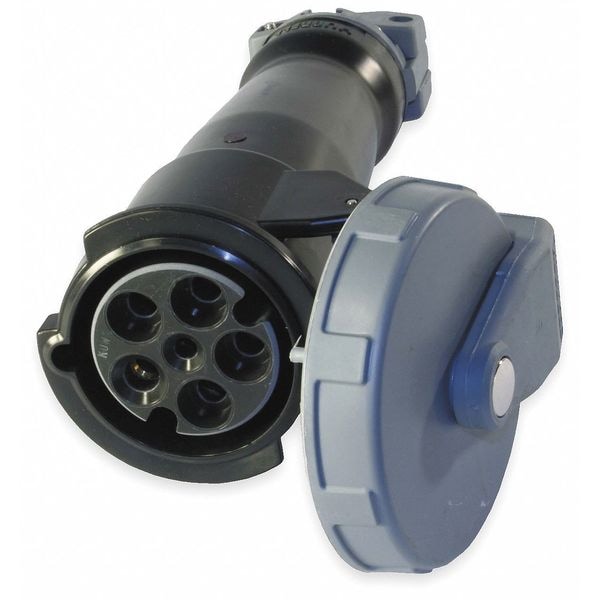

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 100 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black HBL5100C5W - main

Watertight Pin & Sleeve Connector, 100 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL5100C5W

  • Zoro # G2559444

product price:  $830.25
/ea
Free Shipping & Returns

Key Features

Current Rating
100 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5100C5W
Zoro #
G2559444
UPC #
783585405049
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.94 in
For Minimum Cable Diameter
1.605 in
Overall Length
13.14 in
Outside Diameter
5.06 in
Maximum Wire Size
1/0 AWG
Face Diameter
4.71 in
Minimum Wire Size
3 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
100 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Black
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 801 Nylon
HP
30 hp
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Body Material
Zytel 801 Nylon
Application
High Ampacity Connections
Compatible with Series
HBL Heavy Duty
Housing Material Grade
Zytel 801
Housing Material
PBT
Horsepower Rating
50 hp
Shrouded
Yes
Market
Industrial
Power Indicating Light
No
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Insulation
Insulated Body
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Cord Mounted
Number Of Conductors
5-Wire Grounding
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard Service
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Conductor Range
#3 AWG to #1/0 AWG
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Self-closing gasketed cover
• Color coded housings for easy identification
• Super tough insulated non-metallic housing
