  6. Watertight Pin & Sleeve Connector, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black, NEMA 4X

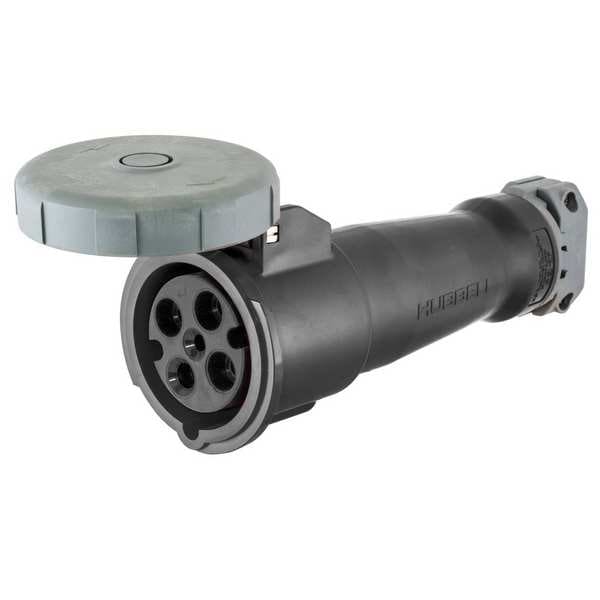

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black, NEMA 4X HBL420C5W - main

Watertight Pin & Sleeve Connector, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black, NEMA 4X

  • Mfr # HBL420C5W

  • Zoro # G3065675

product price:  $255.15
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420C5W
Zoro #
G3065675
UPC #
783585404301
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.83 in
For Minimum Cable Diameter
0.33 in
Outside Diameter
3.43 in
Overall Length
7.57 in
Face Diameter
3.31 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
20 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Black
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
HP
7 1/2 hp
Application
High Ampacity Connections
Minimum Operating Temperature
-40 Degrees F
Housing Material Grade
Zytel 801
Power Indicating Light
No
Horsepower Rating
10 hp
Compatible with Series
HBL Heavy Duty
Shrouded
Yes
Market
Industrial
Reverse Service
No
Housing Material
PBT
Maximum Operating Temperature
75 Degrees C
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Conductor Range
#14 AWG to #10 AWG
Number Of Conductors
4-Wire Grounding
Series
HBL Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Style
Standard Service
Insulation
Insulated Body
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 20A and up to 600V AC, suitable for use in industrial environments. Rated for 20A and up to 600V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon with a PBT body. It accommodates #14 AWG to #10 AWG conductors using pressure terminal screws and supports three-phase power with four-wire grounding. The unit is cord mounted, shrouded, and equipped with color-coded housings for voltage identification.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: 20A, 600V AC; suitable for three-phase applications

  • IP68/IP69K rating per IEC 60309-1 (moisture resistance)

  • Material: Constructed with materials specified as Zytel 801 nylon and PBT body

  • Cord Grip: External cord grip intended to provide strain relief on conductors

  • Operating Temperature Range: -40°C to +75°C (as specified by manufacturer)

  • Wire Accommodation: Compatible with conductor sizes from #14 AWG to #10 AWG via screw terminals

  • Horsepower Rating: maximum of 10 hp; also listed at 71⁄2 hp

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033

  • Circuit Configuration: Four-wire grounding, three poles; grounded per IEC conventions

  • Features: Color coded housings for easy identification, self-closing gasketed cover, impact resistant construction
