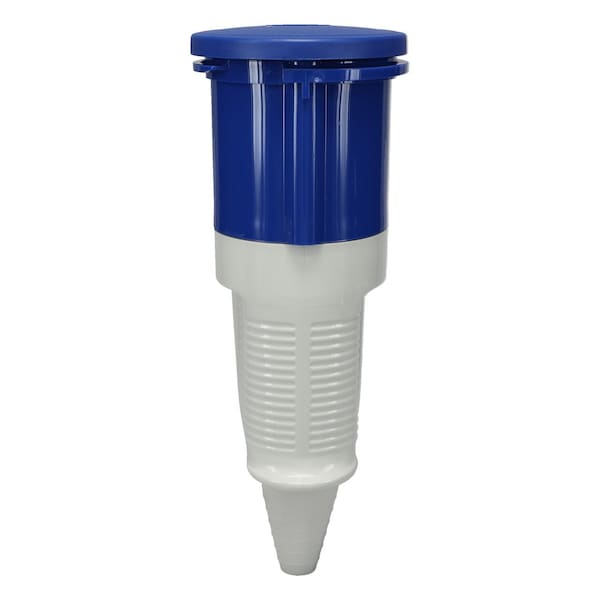

Pin and Sleeve Connector, 60A, 230/250, 1 Phase, 2 Pole, NEMA Not Rated
Mfr # 360306
Zoro # G016275727
product price:Â $348.99
/ea
Free Shipping & Returns
Key Features
Current Rating
60 A
Phase
1
Number of Poles
2
Number of Wires
3
IP Rating
IP44
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 360306
- Zoro #
- G016275727
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Height
- 10.47 in
- Length
- 4.49 in
- Width
- 3.78 in
Details
- Item
- Pin and Sleeve Connector
- Current Rating
- 60 A
- Voltage Rating
- 230/250
- Phase
- 1
- Number of Poles
- 2
- Number of Wires
- 3
- IP Rating
- IP44
- NEMA Enclosure Rating
- Not Rated
- Wire Connection Type
- Screw Terminals
- Housing Color
- Blue
- Cap Type
- Spring-Loaded Cap
- Standards
- IEC 60309, UL Listed, CSA Certified
- Material
- Thermoplastic
- Application
- Industrial Electrical
- Cable Gland
- Flexible Cable Sleeve
- Clock Position
- 6
Description
Walther Electric 360306 Pin and Sleeve Connector 60A/ 63A 3 Wire 230/250 VAC 6hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 360C6 or 363C6 electrical connector.
- UL Listed
- CSA Certified
- Flexible Cable Sleeve
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
