  11. Watertight Pin & Sleeve Connector, Three Phase, 4 Pole, NEMA 4X

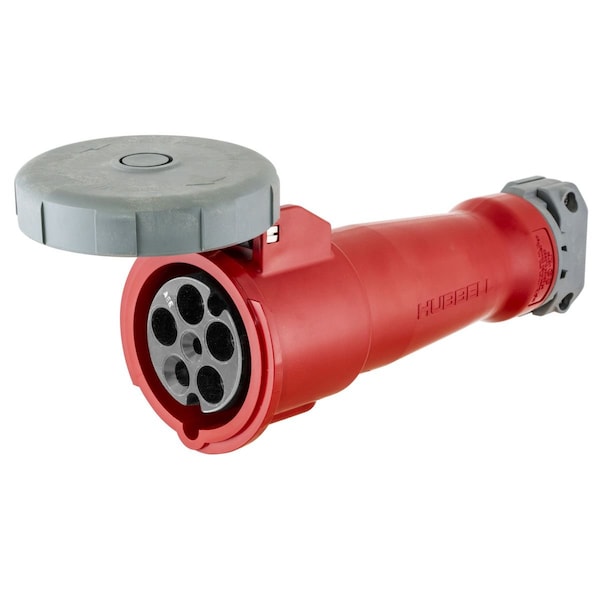

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, Three Phase, 4 Pole, NEMA 4X HBL5100C6W - main

Watertight Pin & Sleeve Connector, Three Phase, 4 Pole, NEMA 4X

  • Mfr # HBL5100C6W

  • Zoro # G400702440

product price: $840.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5100C6W
Zoro #
G400702440
UPC #
783585575100
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.94 in
For Minimum Cable Diameter
1.605 in
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Connector
Phase
Three
Number of Poles
4
Number of Wires
5
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Material
Thermoplastic
Application
High Ampacity Watertight Connections
Material - Mounting Hardware
Cord Mounted
Style
Standard Service
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
Insulation
Insulated Body
Environmental Conditions
Watertight
Dielectric Strength
Withstands 3000V Minimum in
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Series
HBL Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Number Of Conductors
5-Wire Grounding
Cord Type
All Portable

Description

Hubbell Wiring Device Kellems, IEC Pin and Sleeve, Female Connector,100/125A 220-415V AC, 4-Pole 5-Wire Grounding, NEMA 4X/69K
