  6. Watertight Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black

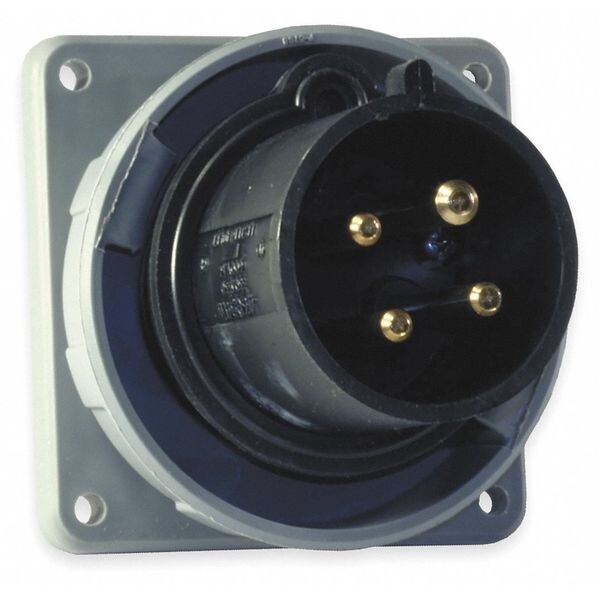

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black HBL4100B5W - main

Watertight Pin & Sleeve Inlet, 100 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black

  • Mfr # HBL4100B5W

  • Zoro # G2057212

product price:  $609.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL4100B5W
Zoro #
G2057212
UPC #
783585403939
Country of Origin
United States

Dimensions

Face Diameter
3.44 in
Flange Diameter
3.94 in
Maximum Wire Size
1/0 AWG
Minimum Wire Size
3 AWG
Cord Size
3 to 1/0 AWG
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Grounding Style
IEC
HP
30 hp
Material
Thermoplastic
Shrouded
Yes
Housing Material
Polybutylene Terephthalate
Insulation Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
HBL Heavy Duty
Horsepower Rating
50 hp
Flange Type
Flanged
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Switch Rated
Yes
Housing Material Grade
Zytel 101
Retainer Material
High-Impact Thermoset
Flammability
UL 94 HB or Better
Product Type
Watertight IEC Device
Gasket Material
Neoprene
Flange Material
Zytel 101 Nylon
Dielectric Strength
3000V AC
Screw Material
300 Stainless Steel
Weight
3.1 lb
Temp. Rise
30°C
Service
Standard
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Wattage
60000
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Environmental Conditions
Watertight
Style
Standard Service
Series
HBL Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Insulation
Insulated Body
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for use in industrial settings with high current capacity. Rated for 100A and 600V AC, this three-phase device features a flanged body constructed from Zytel 101 nylon and thermoplastic materials, constructed from Zytel 101 nylon and thermoplastic materials. The inlet uses pressure terminal screws for wire connections and accommodates wire sizes from #3 AWG to #1/0 AWG. It meets IP67 ingress protection standards, making it suitable for use where water exposure is possible.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: 100 A, 600V AC; three-phase

  • Body Material: Zytel 101 nylon with thermoplastic insulation

  • Ingress Protection: IP67 ingress protection rating per IEC 60309-1

  • Wire Connection Type: Pressure terminal screws for wire connections

  • Operating Temperature Range: -40°C to +75°C (continuous)

  • Dielectric Strength: Withstands up to 3000V AC

  • Cord Size Compatibility: Accepts cord sizes from 3 to 1/0 AWG

  • Horsepower Rating: Up to 50 hp

  • Grounding Style: IEC grounded design

  • Main Features: Gasketed sealing ring; raised collar surrounds each phase pin; shrouded construction enhances connection integrity

  • Screw Material: Stainless steel hardware resists corrosion

  • Standards Compliance: CSA Certified File LR280C, UL Classified/IEC 60309-1 & -2, UL Listed File E146032

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for use in industrial settings with high current capacity. Rated for 100A and 600V AC, this three-phase device features a flanged body constructed from Zytel 101 nylon and thermoplastic materials. The inlet uses pressure terminal screws for wire connections and accommodates wire sizes from #3 AWG to #1/0 AWG. It meets IP67 ingress protection standards, making it suitable for use where water exposure is possible.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: 100 A, 600V AC; three-phase

  • Body Material: Zytel 101 nylon with thermoplastic insulation

  • Ingress Protection: IP67 ingress protection rating per IEC 60309-1

  • Screw Material : Stainless steel hardware resists corrosion

  • Main Features : Gasketed sealing ring ; raised collar surrounds each phase pin ; shrouded construction enhances connection integrity
