Shop HUBBELL WIRING DEVICE-KELLEMS

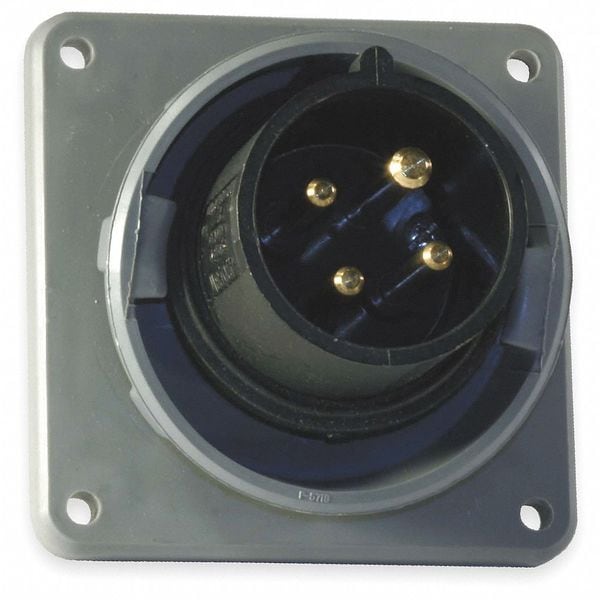

Watertight Pin & Sleeve Inlet, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black

  • Mfr # HBL420B5W

  • Zoro # G2042503

product price:
$
170.10
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL420B5W
Zoro #
G2042503
UPC #
783585404257
Country of Origin
United States
Item
Watertight Pin & Sleeve Inlet
Current Rating
20 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Moisture Resistant, Watertight
Features
Thermoset Polyester Contact Carrier
HP
7 1/2 hp
Body Material - Pin and Sleeve
Zytel 101 Nylon
Body Material
Zytel 101 Nylon
Grounding Style
IEC
Material
Thermoplastic
Flange Type
Flanged
Housing Material Grade
Zytel 101
Housing Material
Polybutylene Terephthalate
Market
Industrial
Shrouded
Yes
Insulation Material
Thermoplastic
Horsepower Rating
10 hp
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
HBL Heavy Duty
Maximum Operating Temperature
75 Degrees C
Gasket Material
Neoprene
Temp. Rise
30°C
Product Type
Watertight IEC Device
Retainer Material
High-Impact Thermoset
Service
Standard
Flange Material
Zytel 101 Nylon
Dielectric Strength
3000V AC
Weight
0.85 lb
Screw Material
300 Stainless Steel
Flammability
UL 94 HB or Better
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Switch Rated
Yes
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1. Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Material - Mounting Hardware
Screw Mounting
Style
Standard Service
Series
HBL Heavy Duty
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage
12000
Connection Type
Screw Terminals
Connection Orientation
Straight
Number of Gangs
1
Reverse Service
No
Grounding
Grounded
UL 94 Flammability Rating
V-0
Number of Pins
4

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 20A and 600V AC, suitable for use in industrial settings. Rated for 20A and 600V AC, this three-phase device features a flanged design with screw terminal wire connections, supporting wire sizes from #14 AWG to #10 AWG. Constructed with Zytel 101 nylon housing and thermoset polyester contact carrier; rated IP67 for protection against water ingress. It is suitable for demanding environments requiring moisture resistance and reliable performance.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: 20 A, 600V AC; three-phase configuration

  • IP67 rated enclosure (omit "Watertight Construction" as a heading)

  • Material: Housing made from Zytel 101 nylon; gasket material is neoprene

  • Cord Size Compatibility: Accepts #14 to #10 AWG wires via pressure terminal screws

  • Rated operating temperature range: -40°C to 75°C (continuous)

  • Flange Type: Flanged mounting with face diameter of 2.11 in and flange diameter of 2.72 in

  • Grounding Style: IEC grounding; shrouded design per IEC standard requirements

  • Standards Compliance: CSA Certified (File LR280C), UL Listed (File E146032), classified under IEC 60309-1 & -2 standards

  • Horsepower Rating: Rated up to 10 hp applications; switch rated for current interrupting at full load
