  6. Watertight Pin & Sleeve Inlet, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

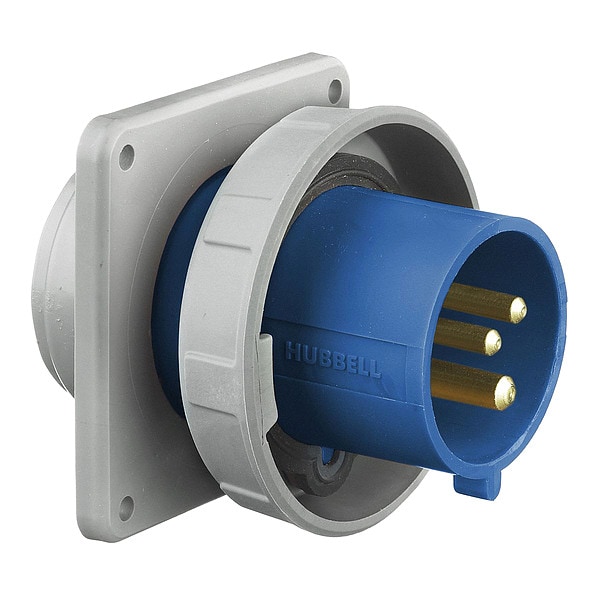

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue HBL320B6W - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Pin & Sleeve Inlet, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

  • Mfr # HBL320B6W

  • Zoro # G1358253

product price:  $149.85
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL320B6W
Zoro #
G1358253
UPC #
783585403281
Country of Origin
United States

Dimensions

Face Diameter
1.85 in
Flange Diameter
2.72 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Cord Size
14 to 10 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Resistance Properties
Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Thermoset Polyester Contact Carrier
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Material
Thermoplastic
Flange Type
Flanged
Shrouded
Yes
Insulation Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
HBL Heavy Duty
Housing Material Grade
Zytel 101
Market
Industrial
Horsepower Rating
2 hp
Housing Material
Polybutylene Terephthalate
Maximum Operating Temperature
75 Degrees C
Retainer Material
High-Impact Thermoset
Product Type
Watertight IEC Device
Flammability
UL 94 HB or Better
Gasket Material
Neoprene
Dielectric Strength
3000V AC
Temp. Rise
30°C
Flange Material
Zytel 101 Nylon
Screw Material
300 Stainless Steel
Service
Standard
Weight
0.7 lb
Operating Temp.
-40 to 75°C
Switch Rated
No
Application
High Ampacity Watertight Connections
Insulation
Insulated Body
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1. Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
5000
Environmental Conditions
Watertight
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Style
Standard Service
Series
HBL Heavy Duty
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Inlet is a IP67 rated for moisture resistance per IEC 60309-1 rated for operation at 20A and 250V AC. It is constructed with a Zytel 101 nylon body and thermoset polyester contact carrier. It is compatible with the HBL Heavy Duty series and meets international standards including CSA, UL, and IEC 60309-1/2. The inlet provides secure connectivity using pressure terminal screws and supports wire sizes from #14 AWG to #10 AWG.


Key Features of the HUBBELL - IEC Pin and Sleeve Inlet:

  • Current Rating: 20 A; Voltage Rating: 250V AC; Single phase

  • Body Material: Zytel 101 nylon

  • Watertight Construction: IP67 rated per IEC 60309-1

  • Cord Size Compatibility: Accepts #14 to #10 AWG wires via screw terminals

  • Contact Carrier: Thermoset polyester

  • Flanged Design: Flange diameter of 2.72 in; face diameter of 1.85 in

  • Operating Temperature Range: -40°C to +75°C (continuous)

  • Horsepower Rating: Rated up to 2 hp

  • Grounding Style: IEC grounded configuration with shrouded contacts

  • Standards Compliance: CSA Certified LR280C, UL E146032, UL Listed to IEC standards
