  6. Watertight Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

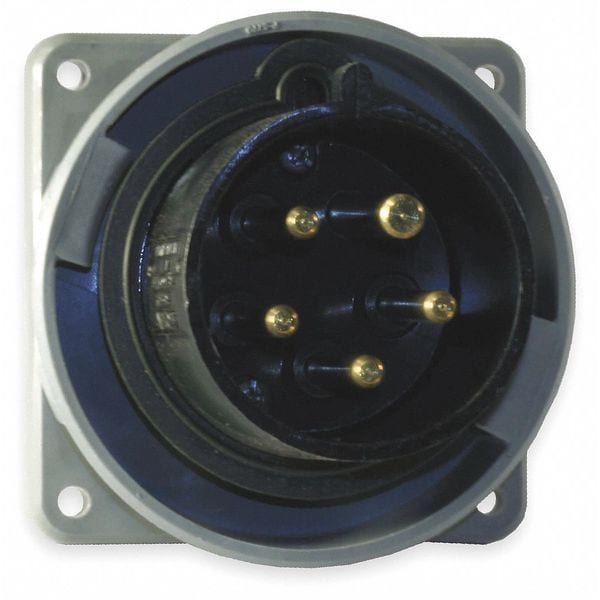

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black HBL530B5W - main

Watertight Pin & Sleeve Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL530B5W

  • Zoro # G0485091

product price:  $402.30
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL530B5W
Zoro #
G0485091
UPC #
783585405391
Country of Origin
United States

Dimensions

Flange Diameter
2.8 in
Maximum Wire Size
10 AWG
Face Diameter
2.75 in
Minimum Wire Size
12 AWG
Cord Size
12 to 8 AWG
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Moisture Resistant, Watertight
HP
10 hp
Body Material - Pin and Sleeve
Zytel 101 Nylon
Grounding Style
IEC
Features
Thermoset Polyester Contact Carrier
Body Material
Zytel 101 Nylon
Material
Thermoplastic
Housing Material Grade
Zytel 101
Flange Type
Flanged
Minimum Operating Temperature
-40 Degrees C
Switch Rated
Yes
Horsepower Rating
20 hp
Insulation Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Shrouded
Yes
Housing Material
Polybutylene Terephthalate
Compatible with Series
HBL Heavy Duty
Product Type
Watertight IEC Device
Flammability
UL 94 5VA, UL 94 V0
Gasket Material
Neoprene
Weight
1.23 lb
Flange Material
Zytel 101 Nylon
Temp. Rise
30°C
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
UV Resistance
All Materials are UV Stabilized
Screw Material
300 Stainless Steel
Service
Standard
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1. Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Series
HBL Heavy Duty
Material - Mounting Hardware
Screw Mounting
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
18000
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Style
Standard Service
Environmental Conditions
Watertight
Connection Type
Screw Terminals

Description

Pin and Sleeve Inlet, Current Rating 30 A, Flange Type Flanged, Grounding Grounded, Hazardous Location Specification Not Applicable, Horsepower Rating 20 hp, IP Rating IP67, Number of Poles 4, Number of Wires 5, Shrouded Yes, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Connection Orientation Straight, Face Diameter 2.75 in, Flange Diameter 2.8 in, Grounding Style IEC, Housing Color Black, Market Industrial, Maximum Wire Size 10 AWG, Minimum Wire Size 12 AWG, Switch Rated No
